Daily processing capacity of 600-2500 square meters
The main task is to complete the forming of TDF flanges/angle iron flanges or "C" flange air ducts, with a daily processing capacity of 600-2500 square meters. During production, simply input the size of the air duct to be processed, and the production line can automatically complete uncoiling, leveling, reinforcing, punching, shearing, high-speed joint locking, TDF flange forming/angle steel flange forming/"C" flange forming, and servo bending forming.

Get The Latest Quote

Add to Quote List View Quote List

Description

U-shaped structure

1. Small occputation with material saving processing mode;
2. The folding platform adopts servo feeding for precise positioning;
3. Input adopts dual modes of touch and keyboard;
4. Easy and simple cutting of flat plates;
5. Support stainless steel welding air duct processing mode;
6. Export and print production record data (optional);
7. Exchange with BIM data (optional);
8. Support hole punching, TDF flange side hole punching, and square beading pressing function (optional);
9. C "flange and block duct function (optional);

Functional flowchart

technical parameter

order code	model	Processing sheet metal and Plate thickness （mm）	Maximum Processing Board width （mm）	Maximum Feed speed （m/min）	Maximum roll material weight （kg）	External dimensions *(Length Width * Height) （mm）**	Total power （kW)	Weight （kg）
1005	ADL-U5C12S08-1250	0.5-1.2 galvanized sheet 0.5-0.8 stainless steel	1250	15	7000	16500×4850x1500	36	12500
1006	ADL-U5C15S10-1250	0.5-1.5 galvanized sheet 0.5-1.0 stainless steel	1250	15	7000	16500×4850x1500	38	13500
1007	ADL-U5C15S12-1250	0.5-1.5 galvanized sheet 0.5-1.2 stainless steel	1250	15	7000	17500×4850x1500	43	16000
1008	ADL-U5C12S08-1500	0.5-1.2 galvanized sheet 0.5-0.8 stainless steel	1500	15	7000	16500×5350x1500	36	13500
1009	ADL-U5C15S10-1500	0.5-1.5 galvanized sheet 0.5-1.0 stainless steel	1500	15	7000	16500×5350x1500	38	15000
1010	ADL-U5C15S12-1500	0.5-1.5 galvanized sheet 0.5-1.2 stainless steel	1500	15	7000	17500×5350x1500	44	17500

The appearance, configuration, and technical parameters of the equipment are for reference only. Please refer to the actual product for accuracy

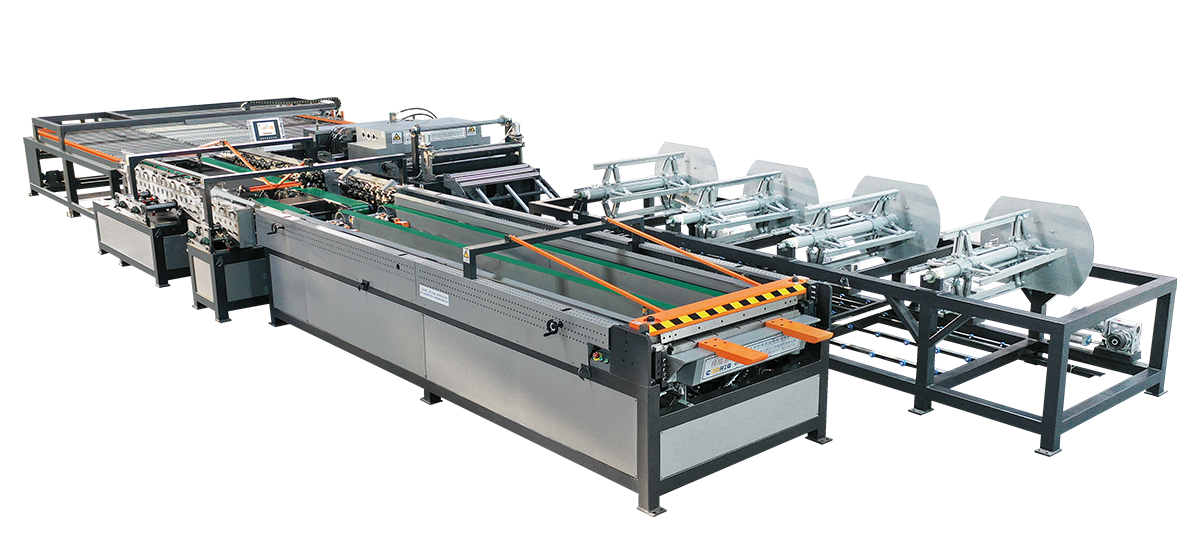

Revolutionary U-Shaped Design for Space and Material EfficiencyThe COORIG U Shape Auto Duct Line 5 features a compact U-shaped structure that significantly reduces the production footprint while optimizing material usage. This duct line integrates a servo-fed folding platform for precise positioning and supports dual input modes via touch and keyboard, enabling easy operation. The system simplifies flat plate cutting and supports stainless steel welding air duct processing, making it a versatile auto duct line machine for various manufacturing needs. The U-shaped design not only conserves space but also enhances the efficiency of material flow, ensuring minimal waste and maximum output. This design innovation is particularly beneficial for manufacturers with limited floor space, allowing them to maximize their production capabilities without compromising on quality or efficiency.

Comprehensive Automated Processing for Superior ProductivityThis duct making machine automates every step of duct fabrication, including unwinding, leveling, reinforcing, punching, shearing, and high-speed joint locking. It efficiently forms common plate flanges, angle steel flanges, and "C" flange air ducts with sealing and servo bending capabilities. Optional features like rod punching, flange edge punching, and square bar pressing enhance customization. The machine also supports exporting and printing production records and BIM data exchange, streamlining production management. By automating these processes, the auto duct line machine reduces the need for manual intervention, thereby minimizing errors and increasing production speed. This comprehensive automation is ideal for large-scale projects where consistency and speed are crucial.

Robust Technical Specifications for Heavy-Duty ApplicationsAvailable in models processing galvanized sheets and stainless steel with thicknesses ranging from 0.5 to 1.5 mm, the full duct line machinery for sale handles maximum board widths of 1250 to 1500 mm and feed speeds up to 15 m/min. With a maximum roll material weight of 7000 kg, the machine boasts substantial power and dimensions tailored for industrial-scale duct manufacturing. This duct line ensures consistent quality and high throughput essential for demanding HVAC applications. The robust construction of the machine allows it to withstand the rigors of continuous operation, making it a reliable choice for manufacturers looking to scale their operations while maintaining high standards of quality and efficiency.

Product Advantages

•Cost-Effective Full Duct Line Machinery for Sale: The COORIG U Shape Auto Duct Line 5 offers competitive pricing without compromising on premium quality, delivering excellent ROI for duct fabrication businesses. Its material-saving design reduces waste, lowering operational costs. The investment in this duct line translates into long-term savings through efficient material usage and reduced labor costs.
•Advanced Materials and Innovative Engineering: Constructed to process galvanized and stainless steel sheets, this duct making machine incorporates servo feeding and high-speed joint locking, ensuring precision and durability in every duct produced. The use of high-quality materials and state-of-the-art engineering ensures the machine's longevity and reliability.
•Comprehensive Automation Enhances Efficiency: Automating unwinding, leveling, punching, shearing, flange forming, and bending, this auto duct line machine minimizes manual labor and errors, boosting production speed and consistency across large-scale projects. The automation capabilities of this machine are designed to meet the demands of high-volume production environments.
•Eco-Friendly and Data-Driven Manufacturing: Optional features like BIM data exchange and production record exports enable smart factory integration, supporting sustainable manufacturing practices and traceability. This data-driven approach allows manufacturers to optimize their processes and reduce their environmental impact.
•Personalized Service and Maintenance Support: COORIG provides extensive after-sale service, including optional modules for rod punching and sealing functions, ensuring the duct line adapts to evolving production requirements with reliable maintenance. This commitment to customer service ensures that the machine remains operational and efficient throughout its lifecycle.

Usage Scenarios

The COORIG U Shape Auto Duct Line 5 is ideal for HVAC manufacturers producing large volumes of air ducts with diverse flange types. In commercial building projects, it enables rapid fabrication of rectangular ducts with precise flanges, ensuring airtight HVAC systems. Industrial facilities benefit from its ability to handle thick galvanized and stainless steel sheets, producing durable ducts for harsh environments. The machine’s automation suits manufacturers aiming to scale production while maintaining quality, reducing labor costs, and meeting tight deadlines. Additionally, the duct making machine is perfect for custom duct fabrication workshops requiring flexible processing modes and data integration for project management. Its versatility extends to producing ducts with specialized sealing and flange designs, supporting innovative HVAC solutions worldwide. The machine's adaptability makes it suitable for a wide range of applications, from large-scale industrial projects to bespoke manufacturing solutions.

About Us

Established in 2004, TIANJIN COORIG TECHNOLOGY CO.,LTD is a leading manufacturer specializing in air duct and volume damper processing equipment, laser cutting machines, sheet metal forming machinery, and fire water pipe processing equipment. With over 20 years of industry experience, COORIG is committed to delivering intelligent manufacturing system solutions globally. Our expansive production bases in Tianjin and Hubei cover over 63,600 square meters and employ more than 140 skilled professionals dedicated to innovation and quality. Our product range includes advanced duct line and auto duct line machine solutions, trusted by over 3,000 customers across 45 countries. COORIG’s mission is to empower HVAC manufacturers with efficient, reliable, and customizable full duct line machinery for sale that meets evolving market demands. We pride ourselves on exceptional customer service, technical expertise, and continuous product development to support your business growth.

Elevate your duct manufacturing with the COORIG U Shape Auto Duct Line 5 — the ultimate duct line solution combining precision, speed, and automation. Don’t miss out on upgrading to this state-of-the-art auto duct line machine that guarantees efficiency and quality. Contact us now to get a quote and transform your production with the best full duct line machinery for sale. Act today and lead your market with COORIG’s trusted duct making machine technology!

FAQ

Who are we?
We are TIANJIN COORIG TECHNOLOGY CO.,LTD, a professional manufacturer of air duct and volume damper processing equipment, laser cutting machines, sheet metal forming machinery, and fire water pipe processing equipment with over 20 years of experience.

How do we guarantee quality?
We maintain strict quality control through advanced manufacturing processes, skilled technical staff, and continuous innovation. Our equipment undergoes rigorous testing to ensure reliability and precision before delivery.

What can you buy from us?
You can purchase a wide range of products including duct line production lines, auto duct line machine systems, laser cutting machines, flange machines, lock former machines, and other sheet metal forming equipment.

Why choose us over other suppliers?
COORIG offers over two decades of expertise, comprehensive after-sale services, customizable solutions, and a global service network. Our full duct line machinery for sale is designed for efficiency, precision, and durability.

What services do we provide?
We provide professional consultation, customized equipment solutions, installation guidance, training, and after-sale maintenance services to ensure optimal performance of your duct making machine.

Can the equipment handle different materials and thicknesses?
Yes, our duct line machines support processing galvanized sheets and stainless steel with thicknesses ranging from 0.5 to 1.5 mm, suitable for various industrial applications.

Is technical support available after purchase?
Absolutely, COORIG offers ongoing technical support and maintenance services to ensure your auto duct line machine operates seamlessly and efficiently throughout its lifecycle.
