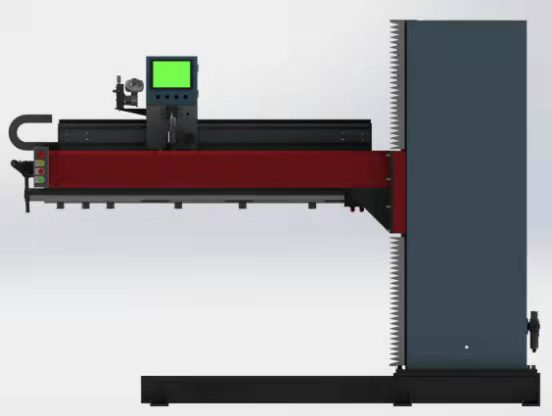

Horizontal lifting automatic seam welding machine is a kind of high-quality, efficient, non-deformation to complete the thickness of 0.6mm to 3mm round tube, flat or open at one end of the square box longitudinal seam welding equipment. It can be used for high-quality welding of carbon steel, cold galvanized, stainless steel, and other materials, and can choose argon arc welding (with or without wire filling), MIG/MAG welding power supply, and longitudinal seam automatic welding system. The spindle is integrated processing, with built-in copper strips and split copper pressing plates. The upper and lower electric price increase of the main beam is suitable for adjusting the size of tube fittings, reducing manpower, improving the feeding speed, and the double linear guide rail slider has a stronger load-bearing capacity; The welding torch is lifted by pneumatic price increase, the truss lift is lifted by electric lifting, and the host control system is controlled by PLC, which has stable operation and high reliability performance.
Suitable working piece
|
Work piece material |
stainless steel, carbon steel |
|
|
Welding requirement |
TIG (TIG) Gas Shielded Welding (CO2) |
|
|
Working piece size |
Work piece diameter ： Work piece length ： Work piece thickness ： Working piece weight ： |
圆管Φ150～Φ1500mm L≤1500mm δ0.8～3mm M＜0.5T |
|
Welding form |
Straight seam |
|
|
Working environment |
Temperature range: -10~50°C Relative humidity: ≤75% (long-term), 90% (short-term, non-condensing) Grid fluctuations: ±10% Altitude: below 1000m |
|
Welding technology
|
Welding method |
The tube thickness is 0.8-3mm, and the single-gun argon arc welding (TIG) horizontal welding process is used to obtain a beautiful weld. |
|
Protection gas |
Ar (99.99%) Pure argon is used for protecting gas and back protecting gas: Ar (99.99%) |
|
Wire specifications |
According to need |
|
Wire material |
According to material |
|
Bevel form |
No |
|
The amount of the group to the wrong side |
≤0.5mm |
|
Welding gap |
≤0.5mm |
|
Welding cleaning |
Clean up oil, burrs and other impurities within 20mm on both sides of the weld. |
|
Workpiece Assembly |
Built-in positioning and assembling of the seam, can also use manual TIG solder joint to fix the workpiece, the length of the solder joint is about 3 mm, the spot welding spacing is 100~150mm,
|
