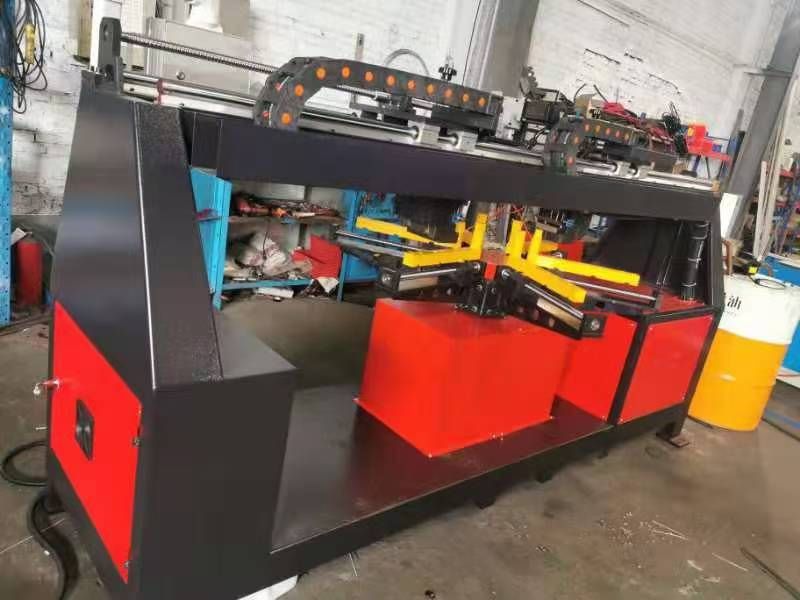

Double-headed CNC Round Flange Punching Machine

Targeted Use and Functional Positioning

This Double-headed CNC Round Flange Punching Machine serves manufacturers and fabricators engaged in producing round duct components requiring high precision and throughput. It is especially suitable for engineers and procurement specialists seeking a reliable round duct machine that supports automated flange punching processes on circular ducts and fittings. As a key asset for a comprehensive duct production line, it addresses the needs of industrial environments focused on efficiency, accuracy, and repeatable quality in duct flange fabrication.

Technical Specifications and Features

Equipped with dual CNC punching heads, this machine accommodates sheet metal thickness ranging from 1.5 to 4 mm and flange diameters between 200 and 1800 mm. Its feeding speed varies from 1 to 8 meters per minute, supported by a powerful 4 kW main motor and servo motors from Zhejiang Hechuan. The inclusion of a Panasonic PLC system and Schneider electrical components ensures consistent operational stability and precision. Its compact footprint and integrated controls make it highly adaptable within broader ducting machine and automation ecosystems, guaranteeing streamlined processing and data-driven control.

Industry Applications and Operational Value

In the HVAC and metal fabrication sectors, this specialized punching equipment enables efficient production of spiral duct round flanges and fan flanges, critical elements in ventilation and air distribution systems. Its automation capabilities reduce manual labor and maintain consistent tolerance standards, essential in quality control protocols. By integrating this machine into a duct machine for sale portfolio, manufacturers can optimize their duct production line, enhancing both throughput and repeatability while maintaining compliance with industry-specific standards for duct component fabrication.

Product Advantages

Structural and Design Benefits

The machine’s double-headed CNC punch layout is engineered for synchronized flange formation, maximizing throughput while ensuring uniform punch quality. Its modular design allows seamless integration into existing duct production lines, promoting scalable manufacturing configurations. By incorporating robust control components such as the Kunlun monitor and Schneider relays, the system’s architecture enhances reliability and simplifies maintenance. This level of engineering design reflects thoughtful adaptation for continuous industrial use in demanding ducting machine environments.

Performance and Usability Advantages

The CNC control system coupled with servo motor precision assures consistent flange dimensions and repeatability crucial for operational efficiency. Automated equalizing punch functionality reduces setup time and human error, increasing overall productivity for end users working with complex round duct assemblies. The intuitive interface provided by the Kunlun monitor facilitates easy operation and on-the-fly adjustments. As a result, this ducting machine supplier solution delivers measurable ROI through minimized downtime and enhanced quality control during flange punching processes.

Use Scenarios

Integration in HVAC Duct Fabrication Facilities

In industrial HVAC production lines, this Double-headed CNC Round Flange Punching Machine plays a pivotal role in producing spiral duct and fan flanges to exacting standards required for air flow systems. Operating within controlled fabrication workshops, it automates component punching processes, improving consistency and reducing labor requirements. The machine’s capacity to handle varying material thicknesses and flange sizes provides flexible support for multi-model round duct machines in these environments. Its seamless incorporation into larger duct production line systems ensures synchronized output critical for meeting project deadlines and quality benchmarks.

Application in Repair and Retrofit Operations

In maintenance and service centers specializing in duct repairs or retrofitting, the machine enables on-site production of replacement flange components. Its automated punching capabilities facilitate fast fabrication of custom-size flanges while maintaining adherence to original design tolerances. This adaptability benefits operations where reliable and precise flange formation impacts system integrity and performance compliance. By fitting into mobile or small-scale workshop setups typical of service providers, it contributes operational efficiency as a trusted duct machine for sale solution tailored for dynamic repair workflows.

FAQ

What materials and thickness can your Double-headed CNC Round Flange Punching Machine handle?

Our machine processes sheet metal with thickness ranging from 1.5 to 4 mm and supports flange diameters between 200 and 1800 mm. It is engineered for precision on a wide range of materials suited for round duct components in your duct production line.

Can you customize the flange sizes or punching patterns on this ducting machine?

Yes, we offer CNC control that allows precise adjustment of punching parameters to accommodate various flange diameters and geometries. This flexibility supports customization for specific projects requiring unique round flange designs with our ducting machine for sale.

What installation and integration support do you provide for this CNC duct machine?

We assist with system integration to fit the Double-headed CNC Round Flange Punching Machine into your existing automated ducting machine supplier workflows. Our technical team provides guidance on installation, setup, and operator training to ensure smooth commissioning.

How do you ensure reliable performance and maintenance of this ducting machine?

The machine is built with trusted components including Panasonic PLC, Kunlun monitor, and Schneider relays, ensuring consistent operation. We recommend regular maintenance based on operational hours, and our support team is available to assist with technical advice and spare parts sourcing.
