Coorig round duct fabrication equipment
Coorig YFL-40 CNC Round Flange Forming Machine is built for HVAC duct workshops that need formed flange rings for spiral ducts, round air ducts, and fan duct assemblies. It turns steel strips into angle iron profiles with rolling and cutting functions, helping production teams keep round duct connection parts more consistent across repeated project batches.
For an overseas buyer comparing a ducting machine supplier, the important review points are material thickness, bending diameter, flange width combinations, CNC control, electrical component list, and how the equipment fits beside spiral duct forming, punching, spot welding, and assembly stations.
Factories reviewing ducting and forming machines can use this page to connect the YFL-40 specification data with application planning for round duct production, ventilation projects, and mid-volume HVAC component supply.

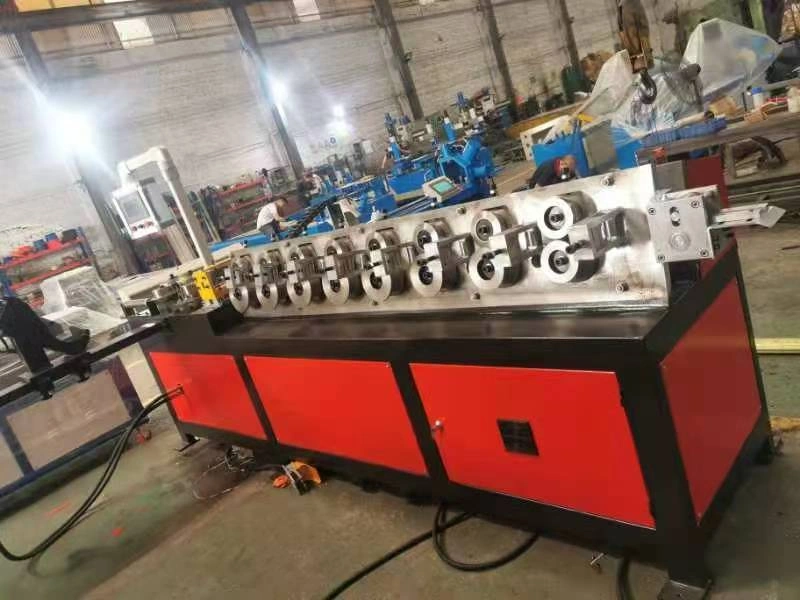

Review the machine view beside the core production parameters to confirm whether the YFL-40 fits the planned round duct diameter range, steel strip thickness, and workshop process flow.
The YFL-40 machine forms steel strips into angle iron profiles used for spiral duct flanges, round air duct connections, and fan duct parts. Its practical value is strongest where a factory needs adjustable flange widths, stable bending across several duct diameters, and a CNC-controlled process that can reduce manual marking, rolling, and cutting variation during repeat production.
| Product Name | CNC Round Flange Forming Machine |
|---|---|
| Model | YFL-40 |
| Processing Thickness Range | 1.5-4 mm |
| Processing Width Range | 15/30, 20/30, 20/40, 25/40, 30/40, 40/40 |
| Bending Diameter | 230-1800 mm |
| Feeding Speed | 1-8 m/min, adjustable |
| Main Machine Dimension | 4300 x 800 x 1500 mm |
| Decoiler Dimension | 1400 x 700 x 1000 mm |
| Machine Weight | 3000 kg |
| Control and Monitor | Panasonic Japan PLC with Kuntai Tongtai monitor |
| Main Drive | 5.5 kW brake motor with high-precision R series hard-toothed gear reducer |
| Electrical Components | Schneider Electric AC contactor and relay, Taiwan Mingwei power supply |
| Hydraulic Components | 4 kW copper oil pump motor and Beijing Huade relief valve |
| Application | Spiral duct flanges, round air duct flanges, fan duct components, and round duct fabrication lines |
The 230-1800 mm bending diameter range helps buyers review one machine for multiple round duct sizes, from compact duct sections to larger ventilation and fan duct assemblies.
Panasonic PLC control, adjustable feeding speed, and monitoring support stable flange forming when a factory needs repeatable geometry across batch production.
The machine can be reviewed beside spiral duct forming, flange punching, spot welding, and assembly stations so the final floor layout fits the buyer's duct workflow.
These Coorig articles support procurement teams that need to compare HVAC duct fabrication demand, round flange specification details, and round duct machine adoption trends.
A useful market-facing read for teams comparing CNC duct fabrication equipment as HVAC projects demand cleaner production, better repeatability, and scalable shop-floor capacity.
Read articleThis article focuses on thickness range, flange width, bending diameter, feeding speed, CNC control, and why these parameters matter in spiral duct fabrication.
Read articleA sourcing-oriented article for buyers reviewing round duct machinery as factories update ventilation component production, line integration, and equipment planning.
Read articleThe following feedback reflects common buying situations for HVAC duct workshops reviewing flange forming equipment, floor integration, and repeat production requirements.
5/5 Rating
"Our duct shop needed a clearer way to compare flange width, diameter range, and machine footprint. The YFL-40 specification made it easier for engineering and purchasing to review the same data."
Production Engineer, United Arab Emirates
5/5 Rating
"The most useful point for our team was connecting the round flange machine with the spiral duct line and spot welding station. It helped us plan material movement before sending the quotation request."
HVAC Equipment Buyer, Poland
5/5 Rating
"We compared several round duct equipment options and needed component details for the control cabinet. The Panasonic PLC and Schneider parts list gave our maintenance team a better starting point."
Maintenance Manager, Mexico
These technical questions help procurement teams prepare drawings, workshop data, and production requirements before discussing the YFL-40 machine with Coorig.
The YFL-40 CNC Round Flange Forming Machine is used for forming steel strips into angle iron profiles for spiral duct flanges, round air duct joints, and fan duct components. It suits workshops that need repeatable flange geometry across duct diameters instead of relying on manual forming and cutting steps.
The listed processing thickness range is 1.5-4 mm. Buyers should share the common steel grade, strip thickness, target flange size, and finished duct diameter so the supplier can check tooling match, feeding stability, and the practical setup for the planned production mix.
The machine lists a bending diameter range of 230-1800 mm, which helps workshops cover compact round duct parts and larger ventilation or fan duct assemblies. Procurement teams should compare that range with project drawings, duct standards, and the expected split between small and large diameter production.
The product page lists a Kuntai Tongtai monitor, Panasonic Japan PLC, Schneider Electric AC contactor, Schneider Electric relay, Taiwan Mingwei power supply, 5.5 kW brake motor reducer, 4 kW copper oil pump motor, and Beijing Huade relief valve. These details help engineers review the control cabinet and maintenance expectations before ordering.
Useful information includes available floor space, power supply, material storage method, strip feeding direction, operator access, finished part handling, and whether the machine will stand near a spiral duct forming line, punching station, spot welding station, or separate assembly area.
Sample review should compare flange width, angle consistency, rolling marks, cut quality, circular fit, joint alignment, and repeatability across several diameters. A practical evaluation also checks whether feeding speed and setup changes can be controlled without excessive trial material.
