Main technical parameters
| Order code |
4001 |
| Tube diameter |
80-1500mm |
| Tube length |
120-8000mm |
| Suitable materials |
Galvanized sheet, stainless steel, aluminum |
| Processing plate thickness |
0.4-1.2mm (galvanized sheet) |
| Processing board width |
137-140mm |
| Processing speed |
1-45m/min |
| Lock Mode |
Outer tube |
| Electric control system |
Computer PLC control, variable frequency speed regulation |
| Host power |
5.5kW |
| Cutting motor power |
4kW |
| Cutting method |
Saw blade cutting |
| Weight |
About 2200kg |
| Packaging size |
2700*1700*2300mm |

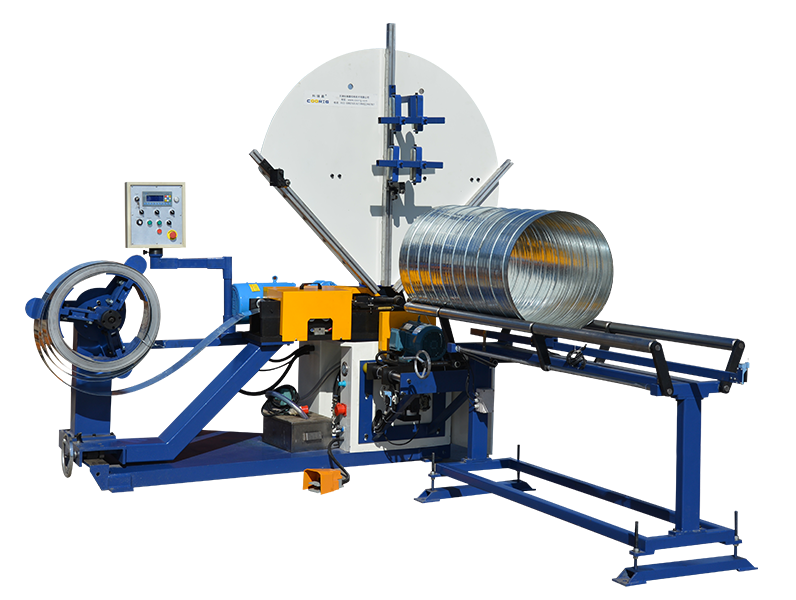

The SDM-1500 is a high-capacity round duct machine designed for industrial duct fabrication lines, enabling precise spiral duct forming from 80 to 1500 mm diameters with automated control. Equipped with PLC control and variable frequency speed adjustment, this ducting machine delivers consistent seam quality and supports metal thicknesses from 0.4 to 1.2 mm for efficient production. As a reliable duct machine for sale, it optimizes output and reduces manual handling, providing manufacturers with improved operational efficiency and seamless integration into existing duct production line systems.Functional Positioning and Target UsersThe SDM-1500 Spiral Duct Forming Machine is engineered for industrial manufacturers and fabricators specializing in HVAC components and ducting systems. Its design targets production engineers, plant managers, and procurement specialists requiring reliable, high-throughput duct forming solutions. As a key ducting machine supplier solution, it optimizes metal strip shaping into spiral ducts with diameters ranging from 80 to 1500 mm, addressing a broad spectrum of project specifications and ensuring consistent product quality crucial for commercial ductwork manufacturing.Technical Features and Core SpecificationsThis duct machine for sale features a robust 5.5 kW main drive paired with a 4 kW cutting motor, governed by computer PLC control with variable frequency speed adjustment for precision and consistency. It processes plate thicknesses from 0.4 to 1.2 mm and board widths between 137 and 140 mm, accommodating galvanized steel, stainless steel, and aluminum. The machine operates at speeds up to 45 m/min, supporting tube lengths adjustable from 120 to 8000 mm, allowing customizable production runs with reliable seam quality and concentricity essential for duct production lines.Industry Applications and Application ValueThe SDM-1500 integrates seamlessly within industrial duct fabrication workflows, supporting HVAC, ventilation, and air distribution system manufacturing sectors. Its versatility in handling varied metal materials and size ranges makes it suitable for factories requiring scalable output and precise forming. As part of a duct production line, the system enhances throughput while minimizing manual handling and defects, thus improving operational efficiency and return on investment for manufacturers targeting commercial and industrial ducting projects.Product AdvantagesStructural / System / Design AdvantagesDesigned with modular construction and optimized layout, the SDM-1500 facilitates straightforward installation and integration into existing production lines. Its compact footprint of approximately 2700 × 1700 × 2300 mm and weight around 2200 kg enable adaptability without compromising workspace efficiency. The included computer PLC control with variable frequency regulation allows for synchronized forming and saw blade cutting processes, providing precise coordination between forming and cutting subsystems—key attributes for a dependable round duct machine used in continuous industrial applications.Performance / Usability / User ValueThe machine’s variable speed control from 1 to 45 m/min ensures adaptability across production demands, balancing speed with product quality. Its compatibility with multiple metal types and thickness ranges supports diverse fabrication requirements. The saw blade cutting method ensures accurate, clean cuts minimizing post-processing, while PLC automation reduces the need for continuous manual intervention. These features collectively reduce downtime and improve workflow efficiency, delivering measurable value and consistency for users managing industrial duct production.
Use Scenarios
HVAC Duct Manufacturing Factories
Large HVAC plants use this round duct machine to produce standardized spiral ducts for commercial ventilation systems, ensuring dimensional accuracy before shipment.
Ventilation System Component Workshops
Workshops producing air distribution components rely on this ducting machine to maintain stable seam quality and roundness during daily batch production.
Industrial Duct Production Lines
Factories building complete duct production line systems integrate the SDM-1500 to improve automation level and reduce manual forming work.
FAQ
What materials can the SDM-1500 process for spiral ducts?
Our SDM-1500 machine supports processing of galvanized steel, stainless steel, and aluminum sheets with thickness from 0.4 to 1.2 mm. This versatility ensures the spiral duct forming machine meets diverse industrial requirements for HVAC duct making machine applications.
Can the SDM-1500 integrate with existing duct production lines?
Yes, we engineered the SDM-1500 for seamless integration with your current duct production line. It works smoothly alongside cutting, sealing, and assembly equipment, allowing you to optimize throughput and reduce manual handling for your entire duct making machine system.
What operator skills are needed to run and maintain the SDM-1500?
Our SDM-1500 is highly automated with PLC control and variable frequency speed regulation. Basic mechanical training is sufficient for your operators to run and maintain the machine, ensuring consistent seam quality and reliable output without extensive specialist skills.
How is the SDM-1500 shipped internationally to ensure protection?
We package the SDM-1500 in export-grade wooden cases designed to protect its precision and mechanical stability during transport. This careful packing guarantees the spiral duct forming machine arrives ready for immediate factory acceptance testing and production commissioning.
