Main technical parameters
Technical parameters of corner code
| Figure 1 |
 |
 |
Figure 2 |
| Figure 3 |
 |

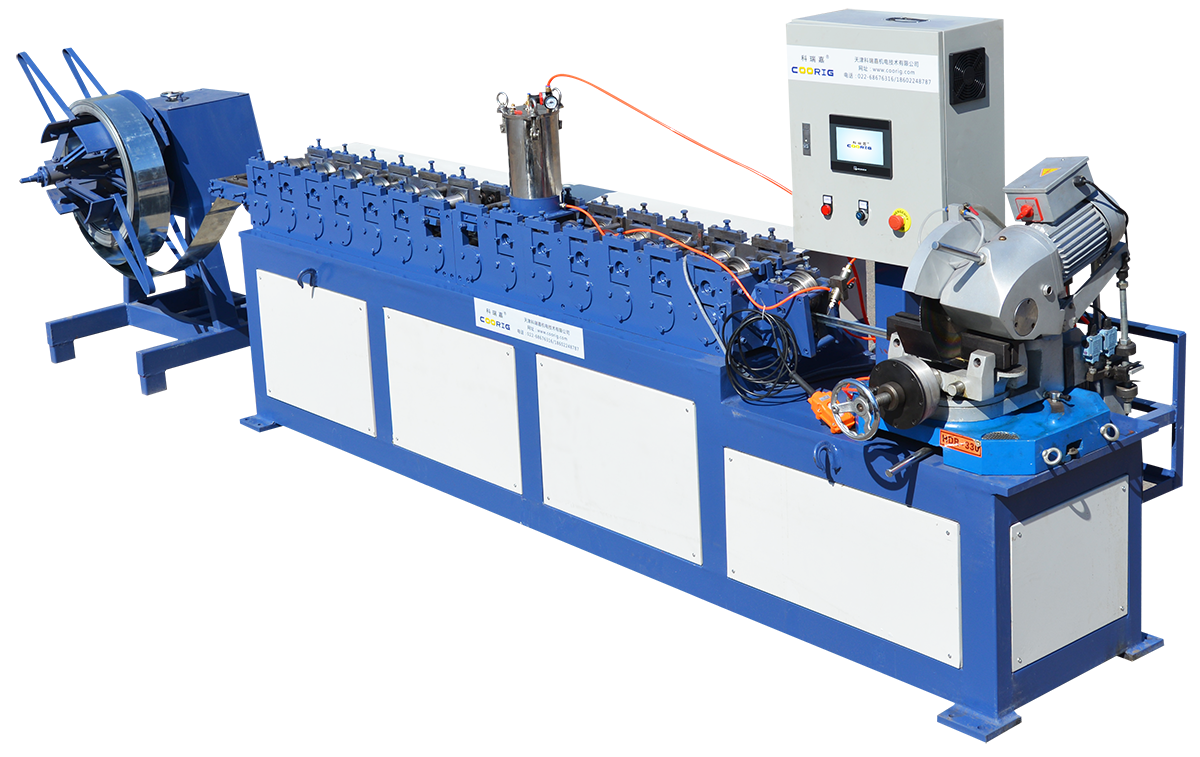

The TDC Flange Forming Machine automates flange joint formation for HVAC duct production, integrating feeding, forming, and cutting to streamline continuous manufacturing processes. Equipped with CNC control, this tdc flange machine achieves precise flange shaping at a consistent speed of 6 meters per minute, optimizing production efficiency. By reducing manual labor and improving seam integrity, this tdc flange equipment enhances process consistency and throughput for manufacturers and engineers.Functional Positioning and Target UsersThe TDC Flange Forming Machine is engineered for manufacturers and production engineers specializing in HVAC ductwork. This tdc flange machine serves as a critical automated solution to form flange joints on duct sections, enabling precise and repeatable flange fabrication within industrial duct production lines. Designed for B2B applications, it supports engineering teams seeking to enhance process consistency and throughput by automating plug-in flange forming tasks.Technical Features and Core SpecificationsThis CNC-controlled tdc flange machine includes an integrated feeding rack, main rolling forming unit, and a non-stop cutting device, allowing synchronized operation to maintain a working speed of 6 meters per minute. An optional automatic glue injection system offers seam sealing during flange formation, improving joint integrity and reducing subsequent manual sealing efforts. The cohesive CNC control system ensures tight tolerances in flange geometry while facilitating reliable continuous production workflows.Industry Applications and Application ValuePrimarily applied in HVAC duct fabrication lines, the TDC Flange Forming Machine supports continuous processing of flange joints on various duct dimensions and thicknesses. It is suited for industrial environments requiring scalable manufacturing capabilities and consistent product quality. By merging feeding, forming, and cutting operations into a single automated cell, this tdc flange equipment enhances production efficiency, reduces labor inputs, and improves overall process stability in ductwork assembly.Product AdvantagesStructural, System, and Design AdvantagesThe design of the TDC Flange Forming Machine emphasizes modular integration, combining a feeding rack, rolling forming unit, and non-stop cutting device under a unified CNC control system. This cohesive structure ensures synchronized operation and adapts seamlessly to plug-in flange forming requirements on duct production lines. The optional glue injection module can be incorporated without compromising the core system’s stability or footprint, illustrating flexible scalability of the tdc flange machine configuration for diverse production demands.Performance, Usability, and User ValueOperating at a consistent speed of 6 meters per minute, the machine delivers reliable and repeatable flange formation with reduced manual intervention. The CNC control enhances precision, minimizing dimensional deviations and improving seam integrity, especially when combined with the optional glue sealing feature. This integration streamlines workflow, reduces operator workload, and supports faster throughput—offering measurable ROI in duct manufacturing processes where repeatability and speed are critical metrics.
Use Scenarios
HVAC Rectangular Duct Manufacturing Plants
Factories use this TDC flange forming machine to form standard TDC flanges directly on duct edges before assembly, ensuring fast and accurate flange installation.
Automated Duct Production Line Integration
Manufacturers building automatic duct lines rely on this tdc flange machine to maintain consistent flange geometry across mass production batches.
Commercial Ventilation System Fabrication Workshops
Workshops producing customized duct systems choose equipment from a professional tdc flange machine manufacturer to ensure flange compatibility with standard accessories.
FAQ
Can the TDC Flange Forming Machine handle various duct sizes and materials?
Our TDC Flange Forming Machine is designed to process a wide range of duct sizes commonly used in industrial HVAC applications. It works efficiently with standard sheet metal materials like galvanized steel, delivering consistent flange geometry with tight tolerances for reliable duct fabrication.
Is customization available for integrating the flange machine into existing production lines?
Yes, we offer customization options to fit the plug-in flange forming system into your current duct production line. Our CNC-controlled system is flexible to support retrofits and upgrades, ensuring seamless integration for automated, high-volume manufacturing.
What are the installation and training requirements for the TDC Flange Forming Machine?
We provide complete support during installation with straightforward mechanical setup instructions. Operator training is concise and practical, focusing on safe use and optimizing performance of the TDC flange machine without requiring extensive technical background.
How do you ensure the quality and consistency of flange joints during production?
Our CNC control system maintains precise flange geometry at a steady speed of 6 meters per minute, ensuring repeatable, tight-tolerance flanges. Optional automatic glue injection also enhances seam sealing to improve joint integrity and reduce additional sealing work downstream.
