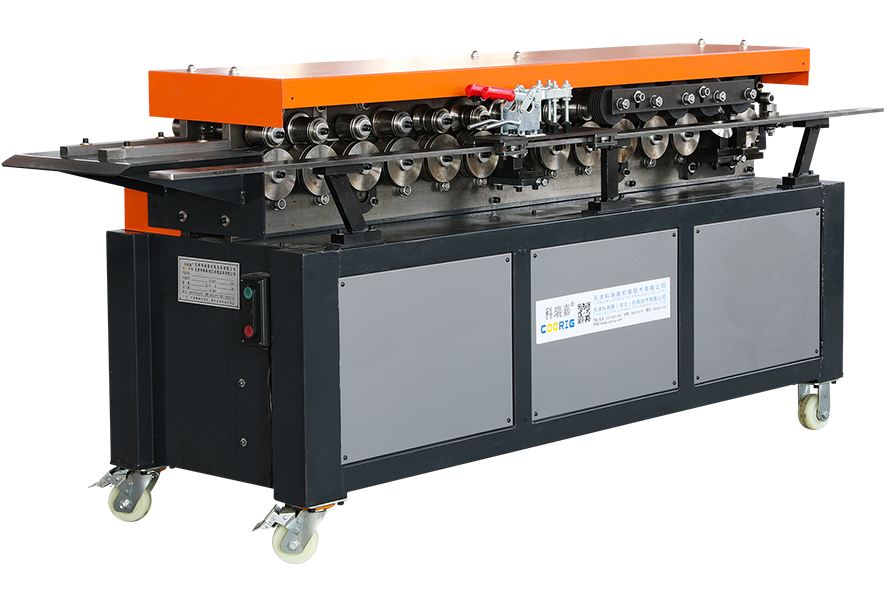

The TDF Flange Forming Machine by Tianjin Coorig optimizes HVAC duct fabrication with precise flange and L-hook forming, roll shear auto-cutting, and a high-speed 14 m/min output. Ideal TDC flange equipment for industrial applications.

Get The Latest Quote

Add to Quote List View Quote List

Description

Product Features

1. One side is formed with TDF flange, and the other side is formed with clip;

2. Equipped with roll shear, automatic cutting of sheet metal required for forming TDF;

3. Beautiful molding, using 14 or 16 pairs of rolling wheels for molding;

4. All use pressure bearings to avoid side plate wear;

5. High speed, with a molding speed of 14m/min per minute

Main technical parameters

The TDC Flange Forming Machine specializes in precise flange and L-hook forming for HVAC duct fabrication, ensuring consistent assembly and compatibility with industrial duct production lines using advanced tdc flange equipment.

Equipped with 14 to 16 rolling wheel pairs and automatic roll shear cutting, this tdc flange machine delivers high-speed operation at 14 m/min, optimizing throughput and shaping accuracy for manufacturers.

By reducing manual intervention and extending tool life, this reliable solution from a leading tdc flange machine manufacturer enhances production efficiency and lowers maintenance costs in busy HVAC fabrication environments.

Functional Positioning and Target Users

The TDF Flange Forming Machine is engineered specifically for HVAC duct fabrication professionals, including engineers and production managers requiring efficient and reliable sheet metal forming solutions. As a key component within industrial duct fabrication lines, this TDC flange machine ensures consistent forming of flange and L-hook ends, critical for precise duct assembly. It supports manufacturers focused on achieving compliance, repeatability, and integration with broader production systems in duct manufacturing environments.

Technical Features and Core Specifications

This machine utilizes 14 or 16 pairs of rolling wheels to deliver uniform, smooth molding on HVAC sheet metals. Featuring an integrated roll shear with automatic cutting, it accurately trims sheet metal to form precise hook codes. The pressure bearing system reduces side-plate wear, extending tool life and decreasing maintenance intervals. With a molding speed of approximately 14 meters per minute, the unit enhances throughput without sacrificing accuracy, reflecting robust engineering consistent with a TDC flange machine manufacturer’s standards.

Industry Applications and Application Value

Industrially, the TDF Flange Forming Machine fits seamlessly into duct production workflows, facilitating end-form creation needed in HVAC ductwork assemblies for commercial and industrial buildings. Its ability to form dual-end features on ducts supports manufacturers in streamlining production, ensuring mating part fitment and sealing integrity, while reducing downtime. The solution aligns with performance-driven HVAC fabrication lines seeking high output and operational reliability using dedicated TDC flange equipment.

Advantages

Single-Unit Design That Simplifies Production Workflow
This tdc flange machine integrates multiple forming functions into one structure, eliminating the need for separate machines for different flange stages. Operators can process duct edges in one continuous operation, which reduces material handling and lowers the risk of dimensional deviation. For workshops with limited floor space, a single-unit configuration improves layout efficiency while maintaining professional forming standards. Choosing equipment from a reliable tdc flange machine manufacturer ensures stable forming performance without increasing operational complexity.

Consistent Flange Geometry That Supports Standard Accessories
As precision tdc flange equipment, the machine ensures uniform flange width, height, and straightness, making it fully compatible with standard TDC corner pieces and rubber gasket systems. Stable flange geometry reduces air leakage risks and improves sealing reliability. For duct manufacturers serving commercial and industrial HVAC projects, consistent flange dimensions are essential for meeting installation specifications and quality inspections. Working with a professional tdc flange machine supplier ensures predictable assembly results.

Industrial Durability for Long-Term Production Stability
Designed by an experienced tdc flange machine manufacturer, this machine uses reinforced frames and wear-resistant forming components to support continuous industrial workloads. Flange forming requires constant mechanical pressure, and structural stability is key to maintaining forming accuracy over time. As dependable tdc flange equipment, it protects production schedules and reduces maintenance frequency, making it suitable for high-output duct factories.

Use Scenarios

Application in HVAC Duct Production Lines

Within industrial HVAC manufacturing settings, the TDF Flange Forming Machine serves as a dedicated solution for applying flange and L-hook end forms on duct sections. It enables fabricators to maintain strict dimensional tolerances necessary for duct joinery, improving seal integrity and assembly reliability. Its integrated roll shear and automatic cutting optimize sheet metal utilization and reduce scrap. The machine’s compatibility with other duct fabrication equipment facilitates smooth workflow integration, reinforcing its role as essential TDC flange equipment in high-volume production.

Role in Prototyping and Quality Assurance

In R&D and quality control operations within HVAC fabrication firms, the machine is employed to trial various sheet thicknesses and duct geometries, verifying forming stability and feature accuracy. Operators utilize the TDF Flange Forming Machine to replicate production conditions for dual-end duct components, ensuring functional fit and leak-proof joints before mass production. Scheduled maintenance on rolling wheels and bearings supports continuous process reliability. Such application underscores the machine’s adaptability and precision critical for a recognized TDC flange machine manufacturer’s product line.

FAQ

What types of sheet metal materials are compatible with the TDF Flange Forming Machine?

Our TDF Flange Forming Machine is designed primarily for HVAC duct fabrication, efficiently handling common sheet metals used in duct production. While the specific material types aren’t listed, the machine’s 14–16 pairs of forming wheels and automatic cutting system ensure precision and durability across typical HVAC sheet metals.

Can the TDF Flange Forming Machine be customized to fit specific production lines?

Yes, our machine uses a Single-Unit Common Plate System enabling seamless integration with existing HVAC duct fabrication lines. We assist customers in customizing setup to match factory automation requirements, simplifying installation and improving workflow efficiency on your production line.

How does your machine reduce maintenance and extend tool life during operation?

The machine’s pressure bearing system is designed to reduce side-plate wear, which helps extend tool life and maintain consistent forming quality. This feature supports high-throughput production environments by lowering downtime and maintenance needs, ensuring reliable operation for long industrial runs.

What support do you offer for installation and operator training?

We provide guidance for on-site line integration and commissioning to ensure efficient machine installation. Operator training is straightforward as the machine requires only basic mechanical knowledge for safe and effective use, enabling smooth transition and quick adoption in your workshop or HVAC factory.
