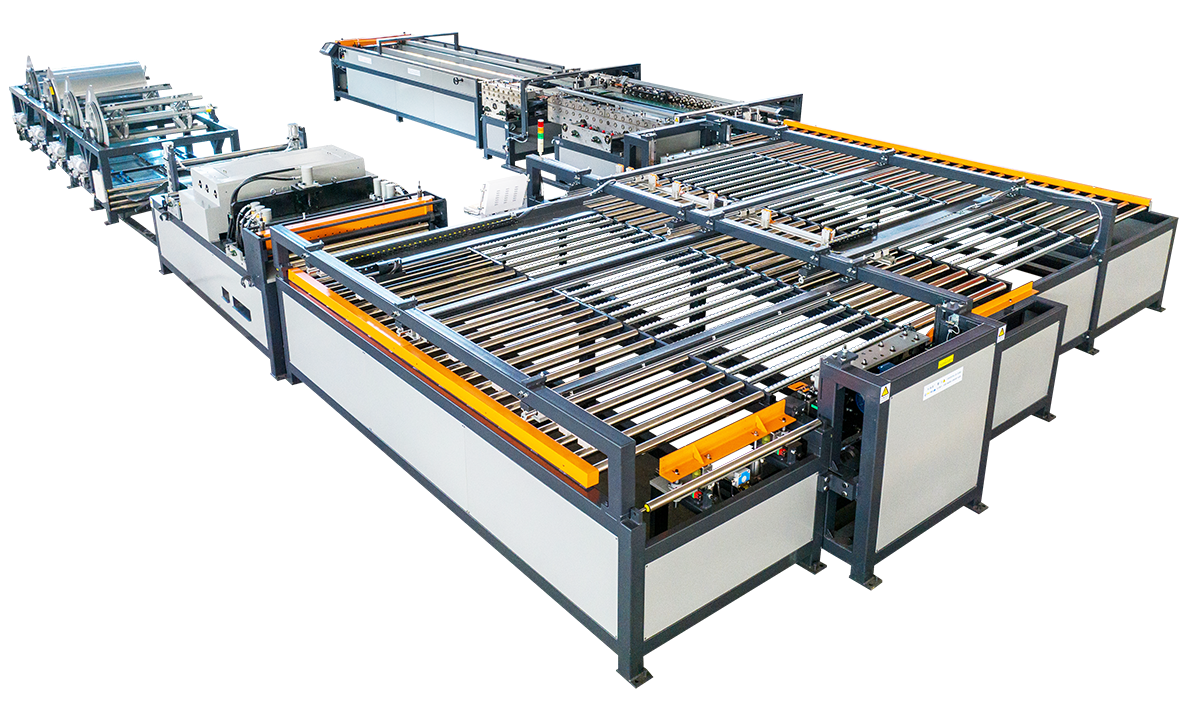

Name: Multifunctional Fireproof Duct Production Line
Brand: Tianjin Coorig Technology Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

L film fastest 18 seconds, square shape fastest 29 seconds
Dual screen control, safe and convenient; One click automatic switching between snap on lock and joint lock systems; Servo electric material pushing, efficient and stable; The thickness, function, and flange form can be customized.

Get The Latest Quote

Add to Quote List View Quote List

Description

function

Can process double-sided color steel air duct inner liner (using snap on lock) and outer liner (using joint lock). Simultaneously taking into account the production of ordinary galvanized sheet air ducts. We can process the outer or inner lining of steel faced magnesium fireproof air ducts according to customer requirements, while also considering the production of ordinary galvanized sheet air ducts. Standard configuration: capable of processing TDF flanges and angle iron flange air ducts; Equipped with reinforcement holes in the middle, screw holes on the flange surface, and double-sided film coating function on the surface.

sample

Technical Parameter

order code	model	Processing sheet metal and Plate thickness （mm）	Maximum processing Board width （mm）	Maximum Feed speed （m/min）	Maximum roll material weight （kg）	External dimensions *(Length Width * Height) （mm）**	Total power （kW)	Weight （kg）
1003	ADL-H5C12C03-1250	0.5-1.2 galvanized sheet 0.3-1.0 stainless steel	1250	20	7000	17500×7700x1500	41	16000
1004	ADL-H5C12C03-1500	0.5-1.2 galvanized sheet 0.3-1.0 stainless steel	1500	20	7000	17500×8450x1500	41	17000

The appearance, configuration, and technical parameters of the equipment are for reference only. Please refer to the actual product for accuracy

Advanced Solution for Industrial Duct Manufacturing
The Multifunctional Fireproof Duct Production Line is an engineered solution designed for industrial-scale HVAC duct manufacturers, sheet metal fabricators, and large construction enterprises. Its primary function is to automate the end-to-end process of duct forming, from raw material decoiling to finished sections. This system is engineered for operators requiring high-volume output and material versatility, capable of processing both standard galvanized steel and specialized fire-rated materials. For businesses aiming to scale operations and enhance production capabilities, this duct fabrication machine offers a robust and reliable core for their manufacturing workflow, ensuring consistency and quality for every component produced.

High-Performance Engineering and Control Systems
This production line is built on a foundation of high-performance technical specifications. It features a servo-driven electric material pushing mechanism, which guarantees stable and precise feeding at speeds up to 20 m/min. The dual-screen control interface provides operators with a safe, clear, and efficient means of managing production parameters and switching between processes. With the capacity to complete an L-film piece in just 18 seconds, this hvac duct machine significantly reduces cycle times. The system accommodates material thicknesses from 0.5-1.2 mm for galvanized sheets and supports coil weights up to 7,000 kg, making it suitable for heavy-duty, continuous operation in demanding industrial environments.

Versatile Applications in Commercial and Industrial Construction
The application value of this system lies in its ability to meet diverse project specifications, particularly in the commercial and industrial construction sectors. It is an indispensable asset for fabricating ductwork for large-scale HVAC installations in facilities like data centers, hospitals, and high-rise buildings, where both standard and fireproof ducts are required. The machine’s standard configuration produces common plate flanges and angle iron flanges, with capabilities for reinforcement holes and screw holes. This integrated functionality ensures that the finished components from this duct line meet stringent industry standards and project compliance requirements, providing significant value and a strong return on investment.

Product Advantages

Integrated Design for Unmatched Versatility
The core structural advantage of our production line is its integrated, dual-purpose design. This system eliminates the need for separate machines by seamlessly processing both fireproof materials (like double-sided color steel and steel-faced magnesium) and standard galvanized sheets. The one-click automatic switching between snap-on bite and joint bite systems further enhances its versatility, reducing setup time and labor costs. Our company offers full customization of the line, allowing clients to specify processing thickness, flange forms, and other functions to create a tailored piece of metal fabrication equipment for sale. This adaptability ensures the machine can be precisely configured to meet specific production needs and integrate smoothly into existing fabrication workflows.

Optimized Performance for Maximum ROI
This machine is engineered to deliver superior performance and tangible user value. The high-speed operation, capable of processing at up to 20 m/min, dramatically increases throughput and overall productivity. By automating complex forming tasks, the auto duct line machine reduces reliance on manual labor, minimizes material waste, and ensures a higher degree of accuracy and consistency in the final product. The user-friendly dual-screen control panel simplifies operation, enhancing both safety and efficiency on the factory floor. For procurement managers and business owners, these performance metrics translate directly into a faster return on investment through lower operational costs and increased output capacity.

Use Scenarios

Streamlining High-Volume HVAC Duct Manufacturing
In large-scale sheet metal fabrication facilities that supply commercial construction projects, this duct production line serves as the central hub of the manufacturing process. It is deployed to handle the complete transformation of metal coils into ready-to-assemble duct sections. Its operational role is to automate leveling, beading, notching, and forming, ensuring a continuous flow of components. The technical advantage is a significant increase in output capacity, allowing the facility to meet tight project deadlines and provide a consistent duct work supply. The system integrates with upstream coil handling equipment and downstream plasma cutting or assembly stations, creating a cohesive and highly efficient production environment.

Fabrication of Compliant Fire-Rated Duct Systems
For specialized workshops that produce certified components for environments with stringent fire safety codes—such as hospitals, data centers, and critical infrastructure—this machine offers a critical capability. Its operational role is to process advanced fireproof materials, including steel-faced magnesium and double-sided color steel, into ducts that comply with international safety standards. The primary technical advantage is its ability to create these specialized ducts with the same efficiency as standard ones, providing a key competitive edge. As a reliable ducting machine supplier, our equipment ensures that all components, including reinforcement holes and flange screw holes, are manufactured to exact specifications for certified system integrity.

About Us

Since our founding in 2004, we have established ourselves as a professional manufacturer specializing in advanced sheet metal forming equipment. With over two decades of dedicated industry experience, our core expertise lies in developing intelligent manufacturing system solutions, including duct fabrication machines and fire water pipe production lines, for a global client base.

Operating from our headquarters and a large-scale production base, our team of over 160 professionals is committed to innovation and quality. We have successfully served over 3,000 customers in more than 45 countries, demonstrating our capacity for delivering reliable, high-performance machinery and fostering long-term partnerships in the HVAC and construction industries.

Contact our technical team for a customized equipment proposal!

FAQ

Q1. What types of ductwork can this machine manufacture?
A: This multifunctional duct production line is engineered for versatility. It can process materials for both fireproof ducts, such as double-sided color steel and steel-faced magnesium board, as well as standard HVAC ducts using galvanized sheet metal. Its dual functionality makes it an adaptable asset for diverse fabrication projects, consolidating different production needs into a single, efficient system.

Q2. Is it possible to customize the machine's configuration?
A: Yes, full customization is a core feature. This duct fabrication machine can be tailored to meet specific project requirements, including adjustments to the processing thickness (0.5-1.2mm for galvanized sheet), the addition of specific functions like reinforcement holes, and modifications to flange forms beyond the standard common plate and angle iron flanges. This ensures the equipment perfectly matches your operational needs.

Q3. How does the dual-screen control system improve operation?
A: The dual-screen interface is designed for enhanced safety and operational convenience. It allows operators to manage different parts of the auto duct line machine simultaneously, providing a clear overview of the entire process from feeding to forming. This design separates control functions, which simplifies workflow, reduces the chance of operational errors, and allows for safer, more efficient system management.

Q4. What kind of performance and speed can I expect from this line?
A: This duct machine for sale is built for high-speed, efficient output. The servo-driven electric material pushing mechanism ensures stable and rapid feeding at up to 20 m/min. The system can complete an L-film piece in as little as 18 seconds and a full "mouth" shape in 29 seconds, significantly increasing productivity for high-volume manufacturing environments.
