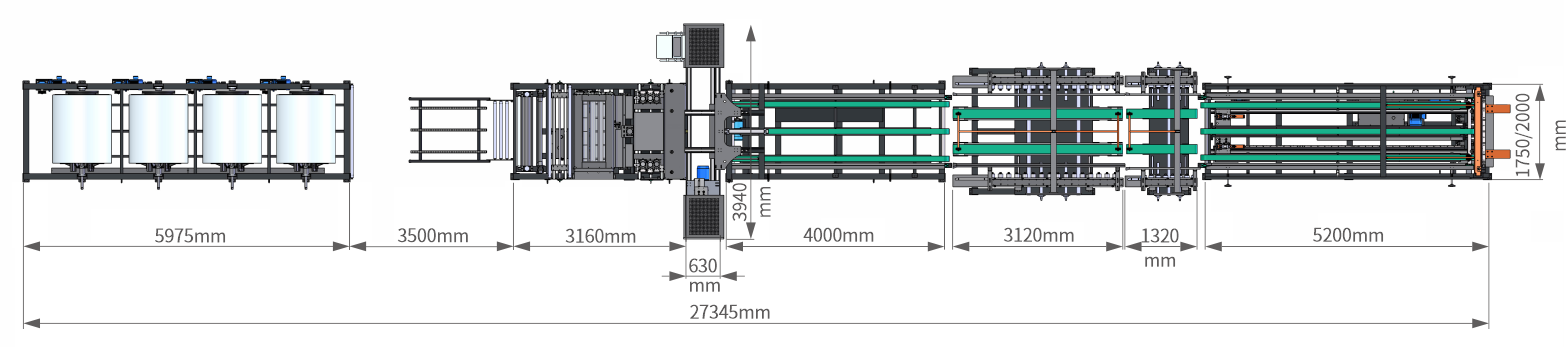

| Straight structure |
1. With material saving processing mode
2. The folding platform adopts servo feeding for precise positioning;
3. Input adopts dual modes of touch and keyboard;
4. Support stainless steel welding air duct processing mode;
5. Export and print production record data (optional);
6. Exchange with BIM data (optional);
7. Support hole punching, TDF flange side hole punching, and square beam pressing function (optional);
8. C " flange and block duct function (optional） |
 |
| Functional flowchart |
 |

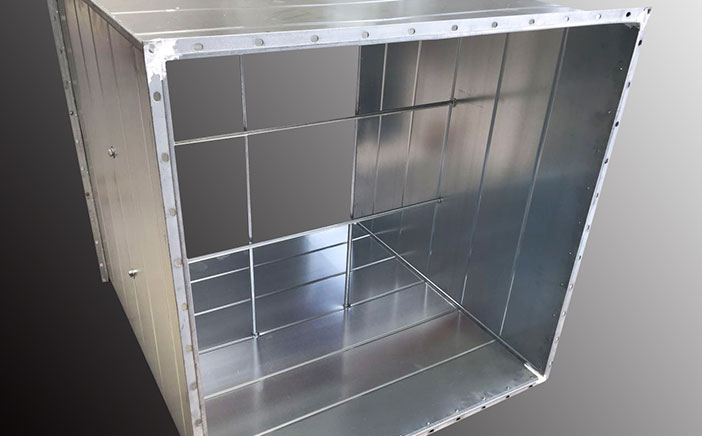

| Support hole punching |
 |
 |

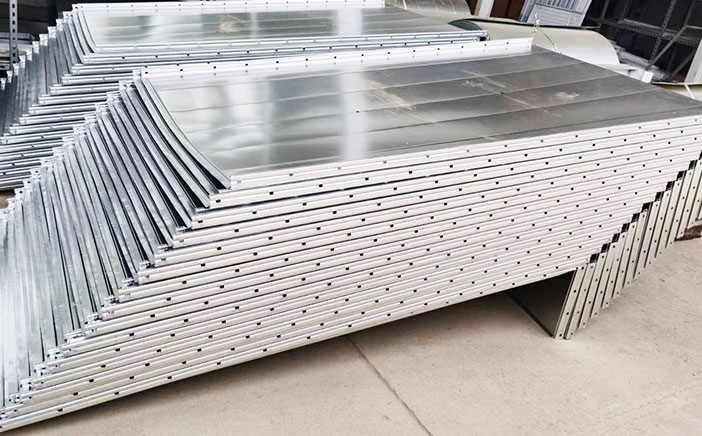

Punching of flange surface |

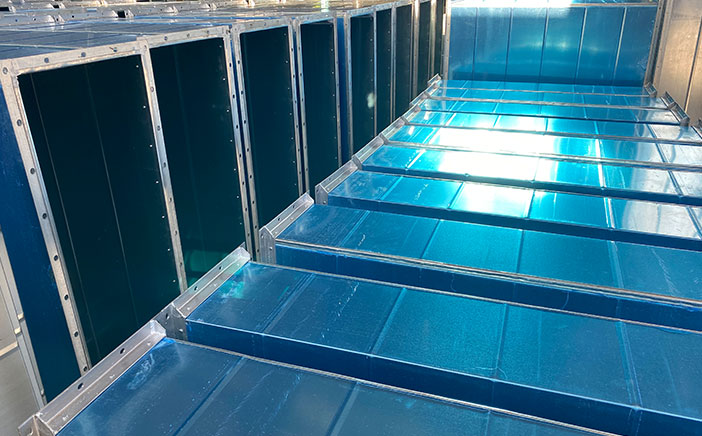

| Film |
 |
Product Technical Parameters
| order code |
model |
Processing sheet metal and
Plate thickness
（mm） |
Maximum Processing
Board width
（mm） |
Maximum Feed
speed
（m/min） |
Maximum roll material
weight
（kg） |
External dimensions
(Length * Width * Height)
（mm） |
Total power
（kW) |
Weight
（kg） |
| 1011 |
ADL-L5C12S08-1250 |
0.5-1.2 galvanized sheet
0.5-0.8 stainless steel |
1250 |
15 |
7000 |
24500×4000x1500 |
34 |
12000 |
| 1012 |
ADL-L5C15S10-1250 |
0.5-1.5 galvanized sheet
0.5-1.0 stainless steel |
1250 |
15 |
7000 |
26000×4000x1500 |
36 |
13000 |
| 1013 |
ADL-L5C15S12-1250 |
0.5-1.5 galvanized sheet
0.5-1.2 stainless steel |
1250 |
15 |
7000 |
27350×4000x1500 |
41 |
15000 |
| 1014 |
ADL-L5C12S08-1500 |
0.5-1.2 galvanized sheet
0.5-0.8 stainless steel |
1500 |
15 |
7000 |
24500×4000x1500 |
34 |
13000 |
| 1015 |
ADL-L5C15S10-1500 |
0.5-1.5 galvanized sheet
0.5-1.0 stainless steel |
1500 |
15 |
7000 |
26000×4000x1500 |
36 |
14000 |
| 1016 |
ADL-L5C15S12-1500 |
0.5-1.5 galvanized sheet
0.5-1.2 stainless steel |
1500 |
15 |
7000 |
27350×4000x1500 |
42 |
17000 |
The appearance, configuration, and technical parameters of the equipment are for reference only. Please refer to the actual product for accuracy
Automated Solution for High-Volume Duct Manufacturing

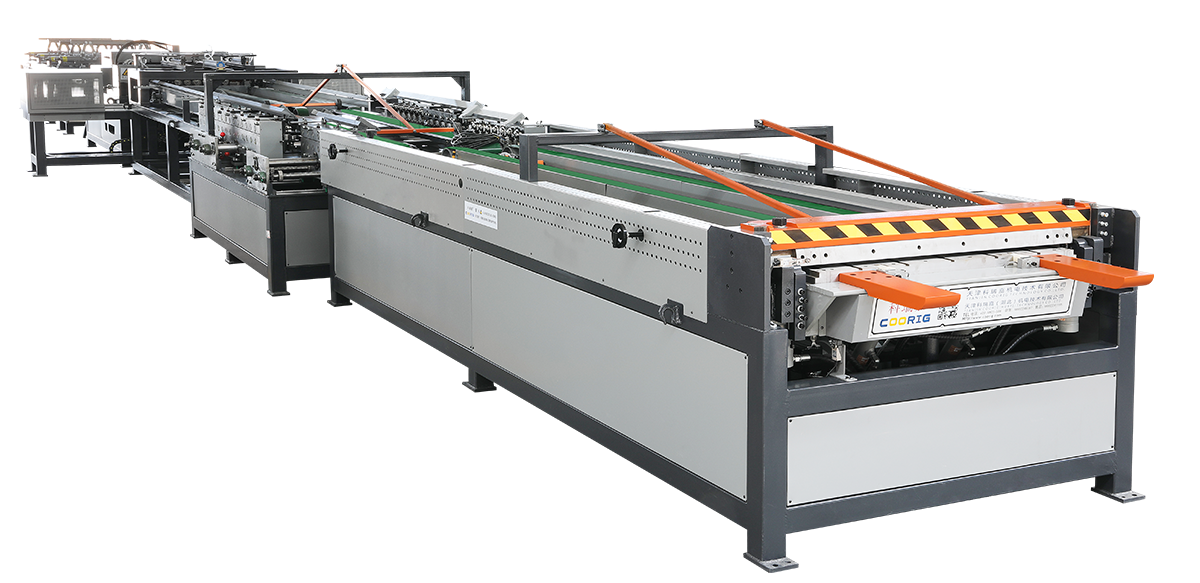

The Super Auto Duct Line 5 is an integrated, fully automated solution engineered for professional sheet metal fabricators and large-scale HVAC contractors. Its primary function is to serve as the core of a production facility, transforming raw sheet metal coils into finished duct sections with minimal operator intervention. By simply inputting dimensional data, this duct fabrication machine executes the entire workflow, from decoiling and leveling to flange forming. This level of automation makes the auto duct line machine an essential asset for businesses aiming to increase output, ensure consistency, and reduce labor costs in high-demand environments.
Precision Engineering and Advanced Control Systems
This system is constructed with a robust linear architecture that optimizes material flow and operational efficiency. At its core, the machine utilizes a high-precision servo-driven feeding and bending system, achieving a maximum feed speed of 15 m/min while maintaining exceptional positional accuracy. Operators can interface with the system via a dual-input control panel, featuring both a responsive touch screen and a durable physical keyboard for flexible data entry. Capable of processing galvanized steel up to 1.5 mm and stainless steel up to 1.2 mm, this metal fabrication equipment for sale is built for demanding industrial use and long-term reliability.
Versatile Flange Forming and System Integration
The Super Auto Duct Line 5 provides significant operational flexibility, capable of producing common plate flanges, angle iron flanges, and C-flanges to meet diverse project specifications. Its daily processing capacity of 600 to 2,000 square meters ensures it can handle large-scale orders efficiently. For modern construction workflows, the system offers optional BIM data exchange capabilities, allowing for seamless integration with digital building models. The ability to export production record data further enhances its value, enabling superior quality control, project management, and operational analysis for any professional hvac ducting supply operation.
Product Advantages

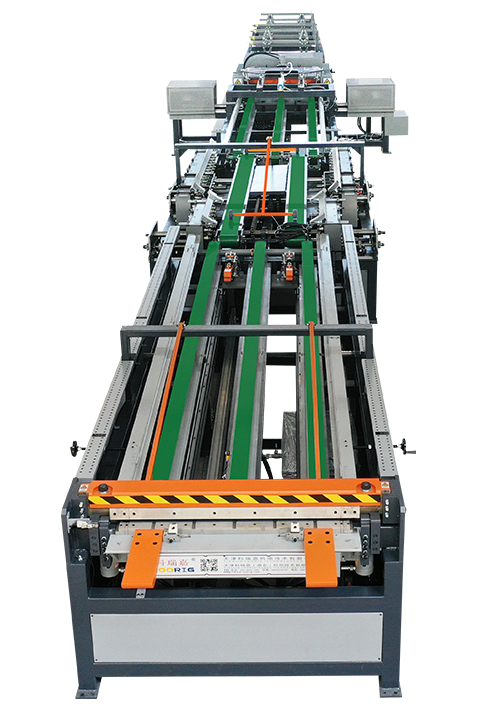

Streamlined Linear Structure for Optimal Workflow
The design of the Super Auto Duct Line 5 is centered on a streamlined, linear structure that ensures an uninterrupted and efficient production process. This layout minimizes material handling and transition times between stages, from decoiling and leveling to punching, shearing, and forming. The system incorporates an intelligent material-saving mode that optimizes sheet metal usage, significantly reducing waste and lowering operational expenditures. Furthermore, the modular design allows for the integration of optional functions, such as C-bone flange forming or support rod punching, enabling enterprises to configure the duct fabrication machines to their specific production requirements and scale their capabilities as market demands evolve.
Enhanced Productivity and Data-Driven Operations
This duct production line is engineered to maximize throughput and deliver a strong return on investment. The servo-driven feeding system not only provides high-speed operation but also guarantees precise positioning, which is critical for producing high-quality, standardized ductwork. This eliminates the inconsistencies and errors common in manual fabrication. The system's value is further amplified by its data management capabilities; the option to export production records allows managers to monitor performance, track material consumption, and generate reports for quality assurance. This data-driven approach transforms the fabrication process into a measurable and optimizable operation, giving businesses a competitive edge in the duct work supply market.
Use Scenarios
Integration in Large-Scale HVAC System Fabrication
In high-volume sheet metal fabrication facilities that supply large commercial, industrial, or residential construction projects, the Super Auto Duct Line 5 serves as the central production engine. Its operational role is to automate the entire workflow from coiled sheet metal to precisely formed rectangular duct sections. The technical advantage is a significant reduction in manual labor and production time, ensuring consistent quality across thousands of square meters. Its optional BIM data exchange feature allows for direct integration with architectural and engineering models, ensuring the fabricated ductwork adheres precisely to project specifications, which is critical for complex and coordinated construction projects. This makes it a key piece of sheet metal fabrication machines for sale.
Stainless Steel Duct Processing for Specialized Environments
This metal fabrication machine is indispensable in workshops that produce ductwork for specialized applications, such as food processing plants, pharmaceutical cleanrooms, and chemical facilities with corrosive atmospheres. Its role is to accurately process stainless steel sheets (up to 1.2 mm) to create ducting that meets stringent hygiene and durability standards. The precision of the servo-driven forming system guarantees tight seams and consistent dimensions, which are essential for maintaining controlled environments. This capability allows fabricators to expand their service offerings into higher-margin, specialized markets that demand superior material compliance and fabrication quality, positioning them as a versatile ducting machine supplier.
About Us
Founded in 2004, we are a specialized manufacturer of intelligent sheet metal machinery with over two decades of dedicated industry experience. Our core expertise lies in developing and producing advanced air duct processing equipment, automated duct production lines, and comprehensive metal forming solutions for a global B2B clientele.
With a significant production base and a robust R&D team of over 140 professionals, we deliver reliable and efficient manufacturing systems. Our equipment is trusted by more than 3,000 customers in over 45 countries across Asia, Europe, and the Americas, reflecting our commitment to engineering excellence and long-term industrial partnerships.
Contact our technical team for a custom manufacturing plan!
FAQ
Q1. What flange types can this machine produce?
A: This auto duct line machine is engineered to form common plate flanges and angle iron flanges as standard. It can also be configured with an optional C-bone flange forming function, making this duct production line a highly versatile solution for various HVAC ductwork specifications. This adaptability allows fabricators to meet diverse project requirements efficiently.
Q2. How does this machine handle different metals and reduce material waste?
A: This metal fabrication machine is designed for high efficiency, featuring an integrated material-saving processing mode to minimize scrap. It capably processes galvanized sheets from 0.5-1.5 mm and stainless steel from 0.5-1.2 mm. This flexibility makes our duct fabrication machines ideal for a wide range of projects, including specialized welded air duct applications.
Q3. Can the production line integrate with digital design software?
A: Yes, this duct fabrication machine supports modern digital workflows. It offers optional BIM data exchange functionality, allowing for seamless integration with your existing design and planning software. This advanced feature streamlines the process from design to fabrication, enhancing accuracy and enabling data-driven manufacturing for any advanced hvac duct machine operation.
Q4. What after-sales service and warranty are included?
A: As a professional ducting machine supplier, we provide comprehensive support for your investment. Every duct line includes a full 1-year warranty. We also offer global door-to-door after-sales service to ensure your equipment maintains peak performance, delivering technical assistance and maintenance directly to your facility to minimize operational downtime.
