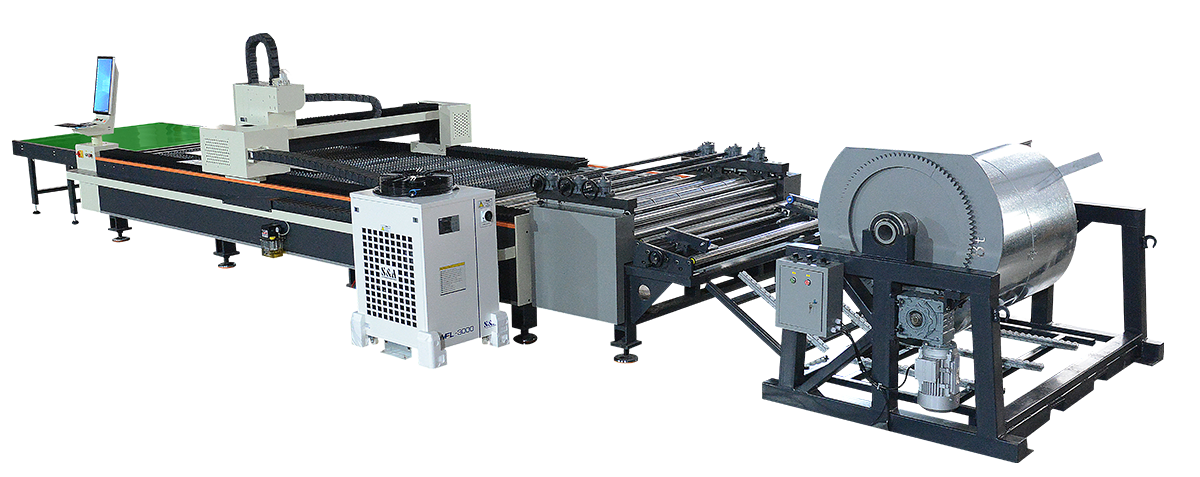

Name: Gear Hobbing Platform Laser Cutting Production Line
Brand: Tianjin Coorig Technology Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

High speed, efficient, and environmentally friendly

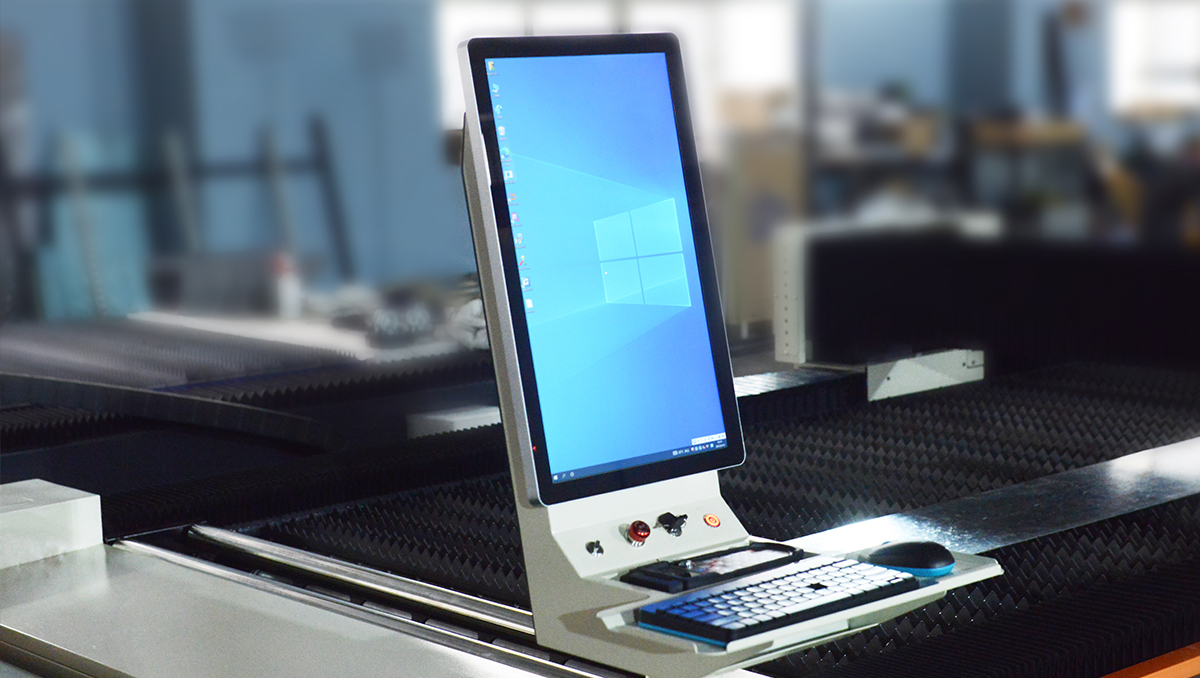

The coil material CNC adopts servo closed-loop feeding, with high feeding accuracy. The coil material CNC can simultaneously control the leveling machine, rolling platform, and unloading platform, or independently control the operation separately; Support automatic cutting after completion of cutting, as well as fixed length cutting without cutting; The system has the following functions: cutting according to the drawing, precise feeding, parts jumping, automatic micro connection, automatic micro lifting, feeding single cutting at any position, whole process reverse cutting, speed regulation during processing, convenient back off, etc

Get The Latest Quote

Add to Quote List View Quote List

Description

function

1. Wide application range: Laser cutting machines with rolling platforms are widely used for cutting and processing various metal sheets such as sheet metal processing, air duct processing, and fireproof door production.
2. High degree of automation: It realizes the linkage of uncoiling, leveling, pressing, automatic cutting, and automatic unloading of coil materials, greatly improving efficiency.
3. Perfectly integrated with commonly used layout software in the ventilation industry, such as PM2000, CamDuck, Lantek, ProNest, FastCAM, etc., without any conversion required; Supports multiple file formats such as ". NC", ". TXT", ". G", ". DFF", ". DWG", etc;
4. The system supports PM2000 and CAMDUCK automatic marking and coding functions (optional).
5. Optional factory wireless data communication function (optional).

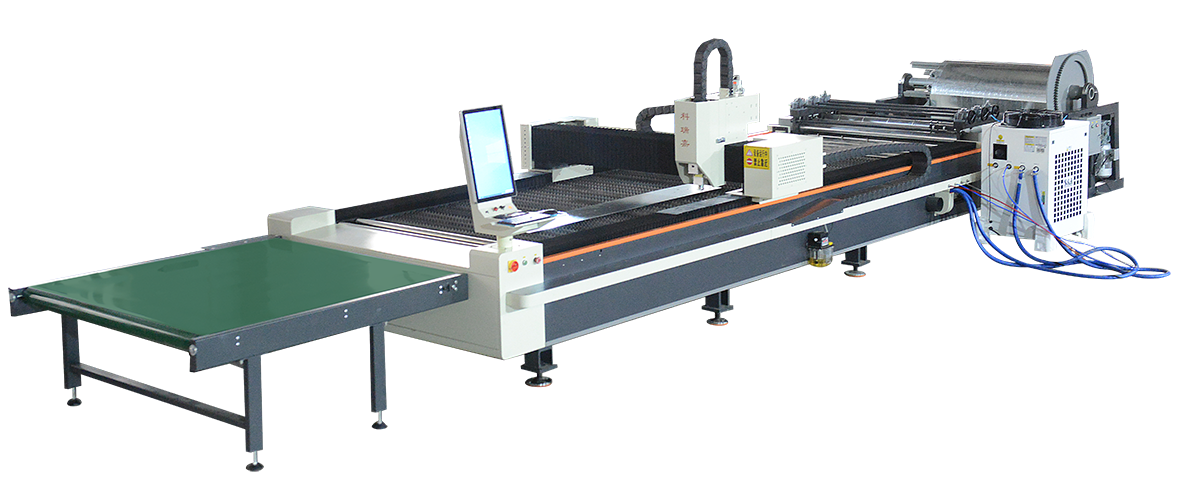

Basic configuration

1. One decoiler (including two coils with a maximum load capacity of 7 tons)
2. A set of leveling and reinforcing mechanism;
3. A rolling cutting platform
4. One unloading platform

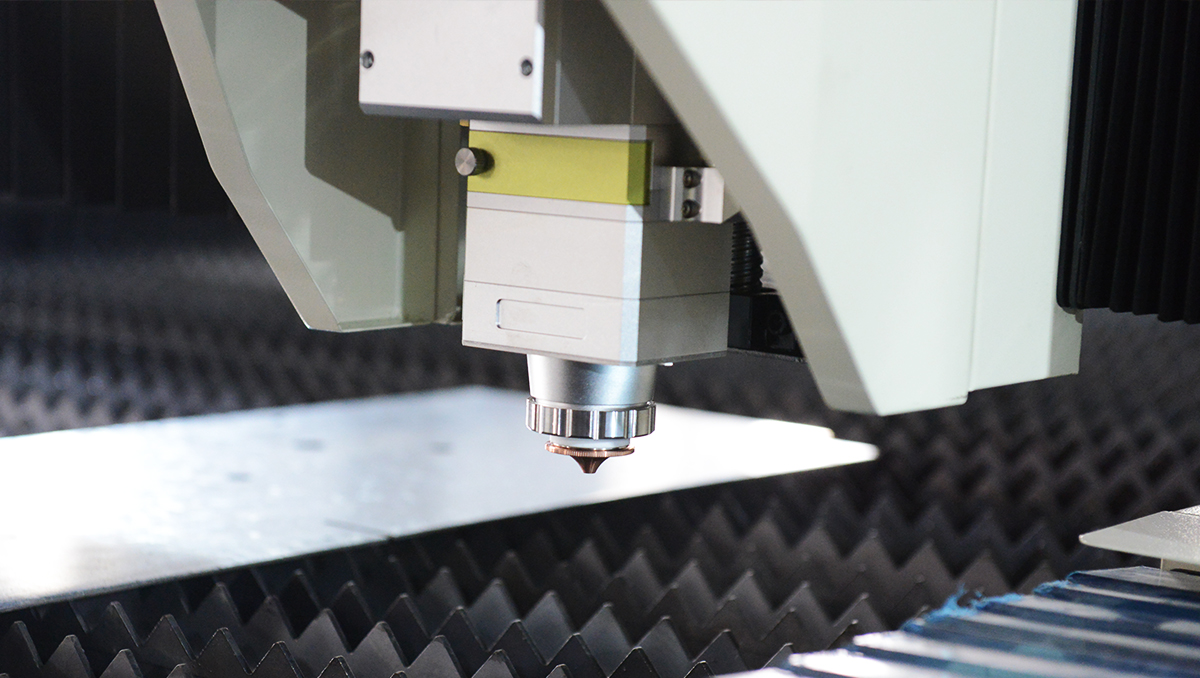

5. One laser cutting source (power optional)
6. One chiller
7. Automatic inkjet printing (optional)
8. Remote data transmission (optional)
9. Standard rolling disc cutting platform, optional rolling tooth cutting platform
(Suitable for processing small parts).

Main technical parameters

order number	model	Processing sheet metal and Plate thickness （mm）	Maximum Processing Range （mm）	Single axis operation speed （m/min）	Single axis acceleration （g）	repeat positioning accuracy （mm）	Cutting speed （m/min）	Total power （kW)	External dimensions *(Length Width * Height) （mm）**	Weight （kg）
2001	LCM-1500×4000	Determine the power of the generator	4000×1500	50	0.5	0.03	Plate thickness When t=1mm,V=25m/min	Determine the power of the generator	5600×2220×1700	2000
2002	LCM-1500×4000-D	Determine the power of the generator	4000×1500	50	0.5	0.03	Plate thickness When t=1mm,V=25m/min	Determine the power of the generator	5600×2220×1700	3000
2003	LCM-1500×4000-R	Determine the power of the generator	4000×1500	50	0.5	0.03	Plate thickness When t=1mm,V=25m/min	Determine the power of the generator	5600x2400x2060	4500
2004	LCM-1500×6000	Determine the power of the generator	6000×1500	50	0.5	0.03	Plate thickness When t=1mm,V=25m/min	Determine the power of the generator	7730×2220×1700	3000
2005	LCM-1500×6000-D	Determine the power of the generator	6000×1500	50	0.5	0.03	Plate thickness When t=1mm,V=25m/min	Determine the power of the generator	7600x2400x1700	4000
2006	LCM-1500×6000-R	Determine the power of the generator	6000×1500	50	0.5	0.03	Plate thickness When t=1mm,V=25m/min	Determine the power of the generator	7600x2400x2060	5500

The appearance, configuration, and technical parameters of the equipment are for reference only. Please refer to the actual product for accuracy

More product information

Precision and Automation for Superior PerformanceThe COORIG Gear Hobbing Platform Laser Cutting Machine is engineered with advanced servo closed-loop feeding technology, ensuring high feeding accuracy and consistent results. This laser cutting machine supports automatic cutting, fixed length cutting, and reverse cutting processes, allowing for unparalleled precision. The system’s capabilities include cutting according to drawings, precise feeding, parts jumping, automatic micro connection, and speed regulation during processing. These features position this metal laser cutting machine as a leader among laser cutting machine manufacturers.

Wide Compatibility and IntegrationThis laser cutting machine suppliers' product perfectly integrates with popular ventilation industry layout software such as PM2000, CamDuck, Lantek, ProNest, and FastCAM without requiring file conversion. It supports multiple file formats including ".NC", ".TXT", ".G", ".DFF", and ".DWG". Optional features like automatic marking, coding, and factory wireless data communication further enhance its versatility and efficiency, making it a top choice among laser cutter suppliers.

Robust Configuration and Technical ExcellenceThe machine features a double rack with two material trays capable of handling up to 7 tons, a leveling and reinforcing mechanism, rolling cutting platform, unloading platform, a laser generator with optional power settings, and a chiller. Optional upgrades include automatic coding and remote data transmission. The standard rolling disc cutting platform can be replaced with a rolling tooth cutting platform for small parts processing, offering flexibility to meet diverse production needs. This metal laser cutting machine ensures high-speed cutting with repeat positioning accuracy of 0.03 mm and single-axis operation speeds up to 50 m/min.

Product Advantages

•Competitive Pricing and Value: COORIG offers this laser cutting machine at a price point that balances affordability with advanced features, making it an attractive option among laser cutting machine suppliers.
•Premium Materials and Durability: Constructed with high-quality components, this metal laser cutting machine guarantees longevity and consistent performance under demanding industrial conditions.
•Innovative Technical Features: Equipped with servo closed-loop feeding and integrated software compatibility, this laser cutting machine stands out among laser cutting machine manufacturers for its cutting-edge technology.
•Eco-Friendly and Efficient Operation: The machine’s design emphasizes energy efficiency and environmental friendliness, reducing waste and operational costs.
•Personalized Service and Maintenance: COORIG provides tailored support, including optional features like automatic coding and wireless data communication, ensuring customers receive customized solutions and reliable after-sales service.

Usage Scenarios

The COORIG Gear Hobbing Platform Laser Cutting Machine is ideal for diverse industrial applications. It excels in sheet metal processing, allowing manufacturers to produce precise air ducts and fireproof doors efficiently. HVAC companies benefit from its compatibility with ventilation industry software, streamlining production workflows. Metal fabrication shops leverage its high-speed cutting and automation to handle large volumes of coil materials with minimal manual intervention. The machine’s ability to process various metal sheets makes it suitable for automotive parts manufacturing and custom metal component production. Additionally, its environmental efficiency supports factories aiming to reduce their carbon footprint while maintaining high productivity.

About Us

TIANJIN COORIG TECHNOLOGY CO.,LTD, established in 2004, is a premier laser cutting machine manufacturers and suppliers specializing in CNC laser cutters, sheet metal forming equipment, and intelligent manufacturing systems. With over 20 years of industry expertise, our products, including metal laser cutting machines, serve more than 3000 customers across 45 countries. Our extensive production bases in Tianjin and Hubei, combined with a dedicated team of over 140 professionals, enable us to deliver innovative, reliable, and eco-friendly solutions. Committed to customer satisfaction, COORIG integrates advanced technology with personalized service, positioning us as top-tier laser cutter suppliers globally.

Unlock unparalleled precision and efficiency with the COORIG Gear Hobbing Platform Laser Cutting Machine – your trusted metal laser cutting machine from leading laser cutting machine manufacturers and laser cutting machine suppliers. Contact us today to request a quote and elevate your production capabilities with this state-of-the-art laser cutting machine!

FAQ

Who are we?
We are TIANJIN COORIG TECHNOLOGY CO.,LTD, professional laser cutting machine manufacturers and suppliers with over 20 years of experience providing CNC laser cutters and sheet metal machinery worldwide.

How do we guarantee quality?
We ensure quality through rigorous manufacturing standards, advanced servo closed-loop feeding technology, and strict testing processes. Our metal laser cutting machines undergo thorough inspections before delivery.

What can you buy from us?
You can purchase a wide range of products, including laser cutting machines, air duct processing equipment, sheet metal forming machines, and fire water pipe production lines from trusted laser cutting machine suppliers.

Why choose us over other suppliers?
COORIG offers innovative technology, excellent integration with industry software, competitive pricing, and personalized services, making us a preferred choice among laser cutter suppliers and laser cutting machine manufacturers.

What services do we provide?
We provide comprehensive after-sale service, technical support, optional upgrades such as automatic coding and wireless data communication, and professional consultation tailored to your production needs.

How does COORIG support automation in metal processing?
Our laser cutting machine features automatic cutting, precise feeding, and integration with popular ventilation software, enabling fully automated, efficient metal processing workflows.

Can the machine handle different metal sheet thicknesses?
Yes, the COORIG metal laser cutting machine supports processing sheet metals up to 50 mm in thickness with high precision, suitable for diverse industrial applications.
