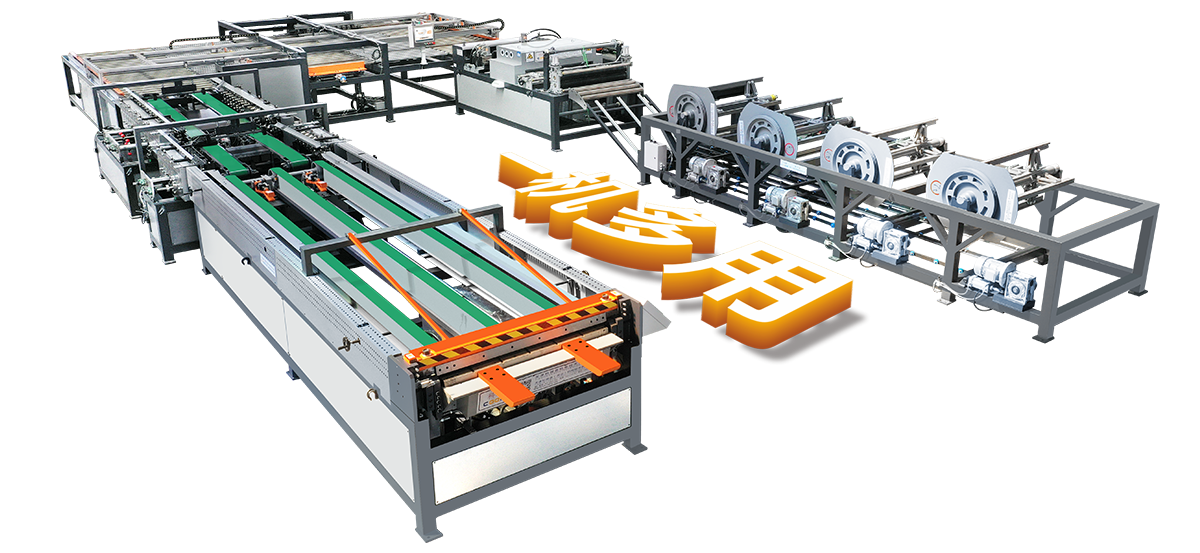

Name: High Speed 2.0 Wide Body U Shape Auto Duct Line 5
Brand: Tianjin Coorig Technology Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

High speed, the fastest processing time for L pieces can reach 18 seconds per piece; The fastest square shape is 28 seconds per section
Front and rear dual screen control, easy to operate; Automatic switching of four lifting and locking machine systems for thick and thin plates; Support simultaneous entry of 10 sets of processing data and cutting data of different specifications; There are two production modes: high-speed and standard speed; Support multiple welding duct processing modes: right angle welding, edge welding, middle butt welding, middle staggered welding, etc; Capable of managing production data; Servo feeding replaces cylinder or stepper motor feeding.

Get The Latest Quote

Add to Quote List View Quote List

Description

1. The processing thickness of galvanized sheet is 0.5-2.0mm, and that of stainless steel is 0.5-1.5mm. Different functions correspond to different sheet thicknesses.
2. Standard configuration: capable of processing TDF flanges and angle iron flange air ducts; Equipped with reinforcement holes in the middle, screw holes on the flange surface, double-sided film coating function on the surface, and stainless steel welding air duct processing mode.
3. Optional: compression square beading, C-shaped insert flange, block function, TDF inner flange function, angle iron inner flange function.
4. The above functions can be combined arbitrarily and implemented on one line.

Functional flowchart

Technical Parameter

order code	model	Processing sheet metal and Plate thickness （mm）	Maximum processing Board width （mm）	Maximum Feed speed （m/min	Maximum roll material weight （kg）	External dimensions *(Length Width * Height) （mm）**	Total power （kW)	Weight （kg）
1001	ADL-H5C20S15-1250	0.5-2.0 galvanized sheet 0.5-1.5 stainless steel	1250	20	7000	17500×7700x1500	51	18000
1002	ADL-H5C20S15-1500	0.5-2.0 galvanized sheet 0.5-1.5 stainless steel	1500	20	7000	17500×8450x1500	51	19000

The appearance, configuration, and technical parameters of the equipment are for reference only. Please refer to the actual product for accuracy

Engineered for High-Volume HVAC Duct Fabrication
The High-Speed 2.0 Wide Body U-Shape Auto Duct Line 5 is a fully integrated solution engineered for industrial-scale HVAC duct manufacturing. Our company designed this system to meet the rigorous demands of professional sheet metal fabricators, production managers, and large-scale HVAC contractors. It serves as the core of a modern production floor, automating the entire process from coil to completed duct section. This auto duct line machine significantly reduces manual labor and elevates output capacity, enabling businesses to fulfill high-volume orders with consistent precision and speed. It is the definitive solution for companies seeking to optimize their duct fabrication machine workflow and gain a competitive edge in the market.

Advanced Automation and Versatile Applications
This system is equipped with advanced technical features designed for maximum efficiency and accuracy. The core of its precision is a servo-driven material feeding system, which offers superior accuracy compared to traditional cylinder or stepper motor systems. A user-friendly dual-screen control interface allows for complete operational monitoring and management from both the front and rear of the line, minimizing operator movement. The machine’s versatility is demonstrated by its ability to automatically switch between four lifting and locking systems to accommodate material thicknesses from 0.5mm to 2.0mm without manual adjustment. This is essential metal fabrication equipment for sale to facilities that handle a diverse range of project specifications and require reliable duct work supply. The application value of the Auto Duct Line 5 extends across various sectors of the sheet metal industry. Its primary application is in the mass production of rectangular ducts for commercial and industrial HVAC systems. However, its capability to process both galvanized and stainless steel, combined with multiple welding duct processing modes (right-angle, edge, butt), makes it suitable for specialized projects. This system provides substantial ROI by dramatically increasing throughput—producing L-shaped pieces in just 18 seconds. For any business focused on duct fabrication machines or large-scale hvac ducting supply, this line translates to faster project completion, reduced material waste, and consistently higher quality output.

Product Advantages

Stable and Integrated Structural Design
The structural design of the Auto Duct Line 5 is centered on stability and integrated functionality. Its wide-body, U-shaped frame ensures operational rigidity even at a maximum feed speed of 20 m/min, minimizing vibration and maintaining processing accuracy. The system consolidates decoiling, leveling, beading, notching, shearing, and forming into one seamless workflow, eliminating the need for multiple standalone machines and reducing material handling. A key design advantage is the intelligent system that automatically adjusts between four distinct lifting and locking mechanisms, enabling flawless processing of both thin and thick plates. As a leading ducting machine supplier, our company ensures this integrated approach provides reliability and adaptability for all your sheet metal fabrication machines for sale.

High Precision and Intelligent Performance Advantages
This duct line delivers exceptional performance value by combining high-speed output with precise, user-friendly operation. The servo-driven feeding mechanism is a critical component, guaranteeing positional accuracy that minimizes waste and ensures all parts meet exact specifications. For operators, the dual-screen control system and the capacity to input up to 10 different processing jobs simultaneously streamline production management and reduce downtime between batches. This advanced control system, coupled with a production data management feature, empowers businesses to monitor productivity, manage resources effectively, and reduce dependency on highly skilled labor for complex setups. This focus on performance and usability makes it a superior pipe processing machine and duct line solution.

Use Scenarios

In a large-scale sheet metal fabrication facility dedicated to commercial HVAC projects, this machine operates as the central automated duct production line. It is engineered to handle large galvanized steel coils up to 7000 kg and process material up to 1500 mm wide. Its operational role is to transform raw coil into fully formed, flanged, and reinforced rectangular duct sections ready for final assembly. The primary technical advantage is its immense throughput, enabling the facility to meet aggressive deadlines for projects like data centers, hospitals, and high-rise office buildings. The system integrates directly with production schedules, accepting batch data for up to 10 jobs to ensure continuous, efficient operation for all hvac ducting supplies.

For manufacturers producing ductwork for specialized environments such as food processing plants, pharmaceutical cleanrooms, or corrosive industrial settings, this unit functions as a high-precision metal fabrication machine. Its ability to accurately process stainless steel up to 1.5 mm thick is critical for meeting stringent hygiene and durability standards. In this context, the machine’s operational role is to create custom duct components with specific joint types, leveraging its support for right-angle, edge, and butt welding preparations. The servo-driven feeding system ensures the tight tolerances required for these high-compliance applications are consistently met, providing a reliable duct work supply and replacing multiple manual or semi-automated processes with a single, efficient workflow.

About Us

Established in 2004, our company is a specialized manufacturer of advanced air duct processing equipment and integrated sheet metal forming machinery. With over two decades of industry expertise, we deliver intelligent, high-performance manufacturing system solutions to a global clientele, focusing on engineering excellence and operational reliability for the pipe processing machine industry.

Operating from extensive production bases totaling over 63,000 square meters, we export our metal fabrication equipment for sale to more than 45 countries. Our dedicated research and development team ensures every system meets stringent quality standards, providing thousands of industrial partners worldwide with efficient, durable, and precise automation technology for their production needs.

Request a custom manufacturing plan today!

FAQ

Q1. What materials and thicknesses is this duct line designed for?
A: This auto duct line machine is engineered for versatility, capably processing galvanized sheet metal from 0.5mm to 2.0mm and stainless steel from 0.5mm to 1.5mm. Its automated system for lifting and locking machines ensures it can seamlessly switch between different plate thicknesses, making it a reliable asset for any duct work supply operation requiring precision and adaptability.

Q2. How does the servo feeding system enhance production accuracy?
A: Unlike systems using less precise cylinder or stepper motors, this model incorporates a high-precision servo-driven feeding mechanism. This technology guarantees superior accuracy and positional control during material transport and processing. For businesses seeking a top-tier duct production line, this feature minimizes material waste and ensures every component meets exact specifications for consistent quality.

Q3. Can this machine be tailored to specific operational requirements?
A: Yes, the system supports customization to meet diverse production demands. While equipped with standard functions like flange forming and hole punching, it offers optional upgrades including a compression square bar, a C-shaped insert flange, and a sealing function. As an experienced ducting machine supplier, we can configure our duct fabrication machines to align with your unique workflow.

Q4. What kind of after-sales support is offered to international buyers?
A: We provide comprehensive after-sales support to ensure long-term operational performance for our global customers. This includes a full 1-year product warranty and global door-to-door service for installation, training, and maintenance. When investing in an HVAC duct machine, you can be confident in receiving expert technical assistance and reliable service, regardless of your location.
