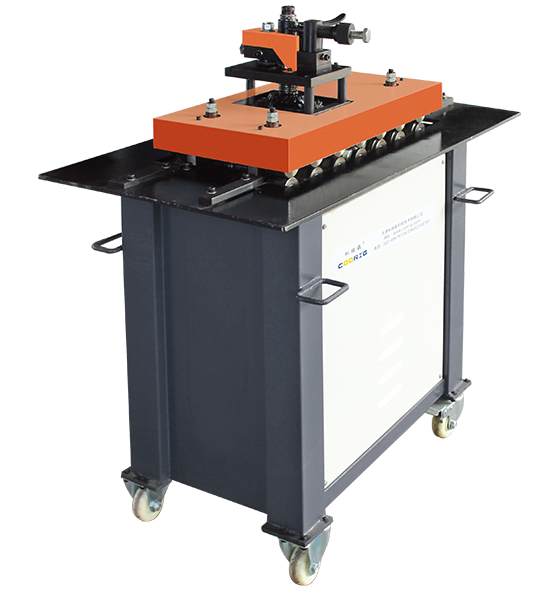

Functional Features
1. One machine with multiple functions, capable of completing pittsburgh lock( female+male), single flat locking, vertical locking, C-type insert and square bend locking;
2. The locking machine adopts pressure bearings;
3. The rolling wheels are all made of GCr15 and the gear material is 20CrMnTi. They are equipped with a reducer to increase the output torque and run smoothly and quietly.
Main technical parameters
The sheet metal pittsburgh lock former machine expertly performs multiple locking processes essential for efficient duct fabrication in industrial sheet metal applications, enhancing production consistency and joint integrity. Featuring advanced components and torque-enhanced operation, this lock former machine ensures smooth, reliable performance with reduced noise and minimal maintenance in high-volume manufacturing environments. By consolidating multiple functions into one compact unit, this sheet metal lock former machine from leading manufacturers reduces labor costs and footprint, delivering superior value in sheet metal fabrication equipment.Functional Positioning and Target Users
The Pittsburgh Locking Machine serves as an essential sheet metal lock former machine for industrial fabrication environments, targeting engineers, production planners, and procurement specialists within HVAC and sheet metal manufacturing sectors. This multi-function unit consolidates five locking processes—joint, single flat, vertical, C-type insert, and square bend locking—into a single machine, streamlining duct joint fabrication. By replacing multiple single-function tools, it supports high-volume manufacturing workflows focused on consistent quality and reduced labor costs.Technical Features and Core Specifications
Built with precision and durability in mind, this sheet metal pittsburgh lock former machine incorporates advanced components like GCr15 rolling wheels and 20CrMnTi gears, ensuring longevity under continuous operation. Its integrated reducer enhances torque output, enabling robust and quieter locking performance across diverse material thicknesses. Pressure bearings provide smooth operation and minimize mechanical friction, while the machine’s compact design reduces the production footprint without compromising functionality or repeatability.Industry Applications and Application Value
Primarily employed in the HVAC duct fabrication and sheet metal processing industries, this lock former machine facilitates a wide range of structural locking operations essential for airtight and mechanically secure duct joints. It enables production lines to achieve higher throughput with superior locking consistency required in commercial building projects and industrial installations. The machine also supports process standardization and operator training, driving operational efficiency and product compliance within complex manufacturing workflows.
Product Advantages
Structural, System, and Design Advantages
The Pittsburgh Locking Machine’s integrated design consolidates multiple locking functionalities into one compact unit, optimizing factory floor space and simplifying system integration. Utilizing high-grade materials—GCr15 for wheels and 20CrMnTi for gears—ensures mechanical robustness compatible with sustained industrial use. The inclusion of a reducer significantly increases torque, contributing to more stable locking operations with reduced noise and vibration. This modular system adapts easily within automated or semi-automated duct fabrication lines, facilitating process streamlining and maintenance with minimal downtime.
Performance, Usability, and User Value
Operationally, the machine delivers consistent and precise lock forming with minimal operator intervention, enhancing throughput and quality control. Its pressure-bearing mechanism guarantees smooth motion, reducing wear and maintenance frequency. The torque-assisted design permits handling of thicker sheet metals while maintaining locking integrity. Users benefit from reduced labor costs and setup times by replacing several single-function tools with one versatile machine, improving overall return on investment for sheet metal fabrication equipment.
Use Scenarios
High-Volume HVAC Duct Production Lines
In large HVAC duct factories, this lock former machine is used as core sheet metal fabrication equipment to form Pittsburgh seams, snap locks, and other standard duct joints in continuous production. As a stable sheet metal pittsburgh lock former machine, it ensures uniform seam dimensions for every duct section, which is essential for fast installation and airtight performance on construction sites. For buyers sourcing from professional sheet metal lock former machine manufacturers, this machine helps maintain consistent output quality while supporting long-term mass production.
Professional Sheet Metal Processing Workshops
Sheet metal workshops handling customized duct sizes and mixed orders rely on this equipment from experienced sheet metal machine manufacturers to complete multiple lock profiles in one system. As a multifunctional lock former machine, it reduces the need for several independent forming units, saving floor space and simplifying workflow management. This makes it a practical solution for companies that require flexible sheet metal fabrication equipment without sacrificing seam accuracy.
Ventilation System Engineering and Installation Companies
For engineering contractors preparing ducts before site installation, a reliable sheet metal pittsburgh lock former machine is critical to ensure joint strength and sealing quality. Using this lock former machine, ducts can be formed with stable mechanical locking force, minimizing air leakage and reducing on-site adjustment work. It is widely adopted by buyers who prefer sourcing from professional sheet metal lock former machine manufacturers with proven industrial reliability.
FAQ
What types of locking processes can the Pittsburgh Locking Machine perform?
Our Pittsburgh Locking Machine supports multiple locking processes including Pittsburgh seams (female and male), single flat locking, vertical locking, C-type insert, and square bend locking. This multifunctional capability streamlines your duct fabrication and reduces the need for multiple machines.
Can you customize the Pittsburgh Locking Machine for specific production needs?
We offer tailored solutions to fit your production requirements. Our team can advise on machine settings and configurations to optimize the sheet metal forming equipment for your HVAC duct fabrication, ensuring reliable operation and efficient workflow integration.
What are the maintenance requirements and durability features of this lock former machine?
Designed for continuous industrial use, our machine incorporates pressure bearings and durable materials like GCr15 wheels and 20CrMnTi gears. These features minimize wear and maintenance needs, providing stable forming accuracy and reducing downtime in your HVAC duct production.
Is the Pittsburgh Locking Machine compatible with existing HVAC duct fabrication lines?
Yes, the machine easily integrates with cutting, folding, and assembly equipment used in standard HVAC production lines. This compatibility helps you enhance overall efficiency by consolidating multiple lock forming functions into a single sheet metal lock former machine.
