| Basic configuration |
1. One electric decolier, including two 7T cois;
2. 1 main machine;
3. One set of control system. |
| Functional flowchart |
 |
technical parameter
| order number |
model |
Processing sheet metal and
Plate thickness
（mm） |
Maximum Processing
Board width
（mm） |
Maximum Feed
speed
（m/min） |
Maximum roll material
weight
（kg） |

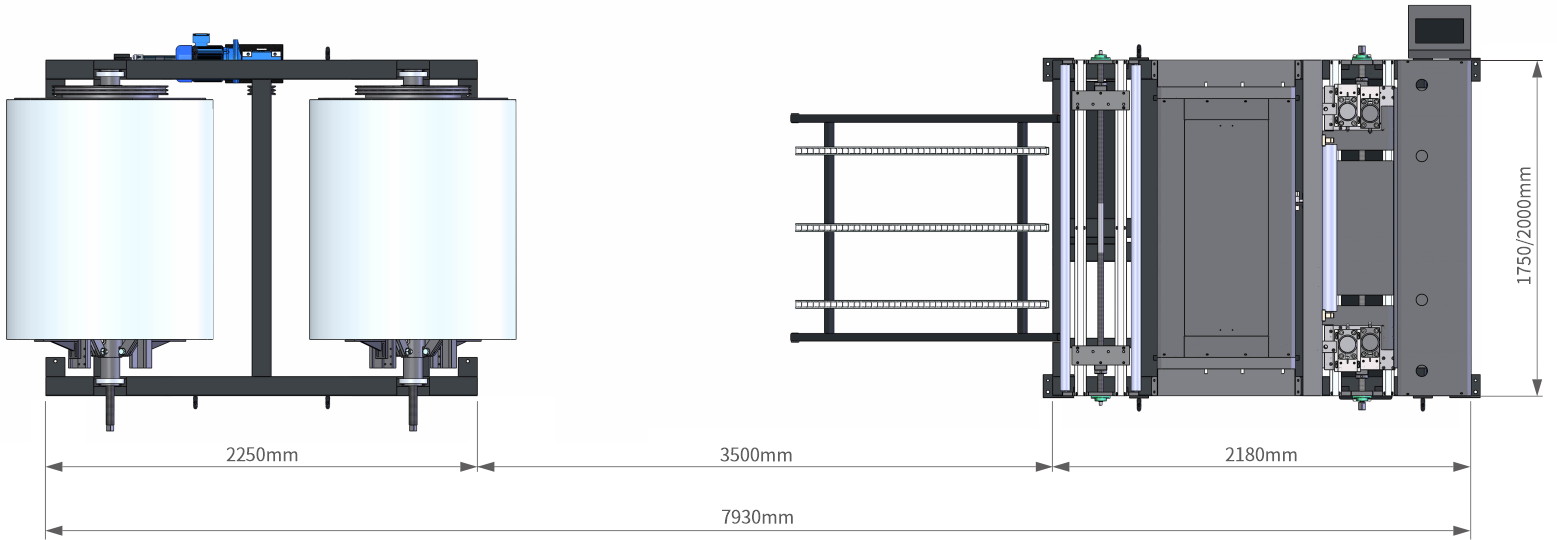

External dimensions
(Length * Width * Height)
（mm） |
Total power
（kW) |
Weight
（kg） |
| 1025 |
ADL-L2C12S08-1250 |
0.5-1.2 galvanized sheet
0.5-0.8 stainless steel |
1250 |
15 |
7000 |
7950×1750×1500 |
9 |
3000 |
| 1026 |
ADL-L2C15S12-1250 |
0.5-1.5 galvanized sheet
0.5-1.2 stainless steel |
1250 |
15 |
7000 |
7950×1750×1500 |
9 |
5500 |
| 1027 |
ADL-L2C12S08-1500 |
0.5-1.2 galvanized sheet
0.5-0.8 stainless steel |
1500 |
15 |
7000 |
7950×2000×1500 |
9 |
3500 |
| 1028 |
ADL-L2C15S12-1500 |
0.5-1.5 galvanized sheet
0.5-1.2 stainless steel |
1500 |
15 |
7000 |
7950×2000×1500 |
9 |
6000 |
The appearance, configuration, and technical parameters of the equipment are for reference only. Please refer to the actual product for accuracy
Integrated Solution for Sheet Metal Duct Fabrication

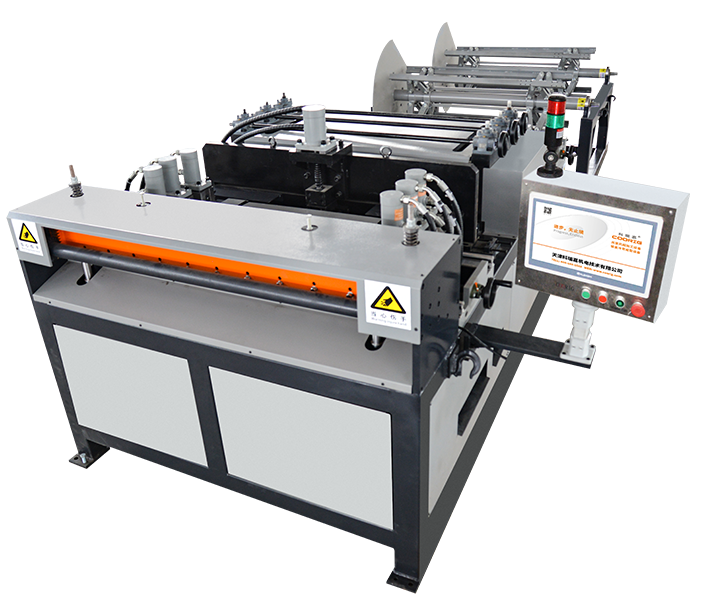

The Auto Duct Line 2 is an engineered solution designed for professional HVAC contractors and sheet metal fabrication workshops requiring high efficiency in a compact footprint. This system is specifically targeted at businesses engaged in on-site or small-to-medium scale production of rectangular ductwork. By automating the entire initial fabrication process, it enables operators to focus on assembly and installation, significantly improving project turnaround times. As a complete hvac duct machine, it provides a turnkey solution for modernizing duct manufacturing operations and reducing reliance on manual labor for repetitive cutting and preparation tasks.
Automated Processing with High-Precision Specifications
This system integrates multiple functions into a single, continuous workflow controlled by a user-friendly interface. The line automatically manages decoiling, leveling, beading/reinforcing, punching, and cut-to-length operations. Capable of processing galvanized sheet (0.5-1.5mm) and stainless steel (0.5-1.2mm) up to 1500mm in width, it operates at a feed speed of 15 m/min. The inclusion of two 7-ton electric feeding racks minimizes material changeover downtime, enhancing productivity. Our company provides a range of sheet metal fabrication machines for sale, with the Auto Duct Line 2 serving as a cornerstone for efficient production.
Enhanced Workshop Efficiency and Application Value
The primary application of the Auto Duct Line 2 is the rapid, consistent production of duct blanks for HVAC systems. Its automated nature ensures dimensional accuracy and repeatability, which are critical for quality duct assembly. Furthermore, the system adds significant value as a material preparation line for other equipment. It can efficiently produce accurately sized sheets for subsequent processing by CNC plasma tables, laser cutters, or press brakes. This integration capability makes it a versatile asset, maximizing the productivity of an entire workshop. As a leading duct machine for sale, it is engineered to deliver a strong return on investment.
Product Advantages
Compact and Integrated System Design
The Auto Duct Line 2 is designed for maximum efficiency within a minimal footprint, making it ideal for workshops with limited space or for deployment at large construction sites. The system’s architecture consolidates an electric decoiler, a multi-function host machine, and a centralized control panel into a single cohesive duct line. This turnkey integration eliminates the complexities of sourcing and synchronizing separate machines. The standard configuration with two 7-ton material trays ensures continuous operation by allowing one coil to be staged while the other is in use, drastically reducing downtime associated with material handling. As a premier ducting machine supplier, we prioritize designs that enhance operational flow.
Superior Performance and Operator Usability
This system is engineered to deliver quantifiable performance benefits, directly impacting operational costs and output quality. The full automation from coil to finished blank significantly reduces the need for skilled manual labor in the cutting and preparation stages, minimizing the potential for human error and material wastage. The result is consistently accurate parts that facilitate faster assembly. The user-friendly control system allows operators to simply input duct dimensions to initiate the automated production sequence, reducing training requirements and improving overall workshop safety. This advanced metal fabrication machine provides a competitive advantage through reliability and efficiency.
Use Scenarios
Streamlined Production in HVAC Duct Fabrication Workshops
In a dedicated HVAC manufacturing environment, the Auto Duct Line 2 functions as the primary automated material processing station. Its operational role is to convert raw sheet metal coils into precisely dimensioned, reinforced, and notched blanks for rectangular ductwork. By handling the entire front-end workflow—from decoiling and leveling to cutting—it achieves a significant technical advantage in throughput and consistency over manual methods. The system integrates seamlessly with downstream duct fabrication machines such as TDF flange formers and corner inserters, ensuring the entire hvac ducting supply chain is optimized for speed and quality.
High-Efficiency Blank Preparation for General Sheet Metal Fabrication
Within general sheet metal fabrication facilities, this machine serves as a highly efficient cut-to-length and material preparation line. Its operational role is to feed perfectly flat, accurately sized metal sheets to advanced systems like CNC laser cutters or turret punch presses. The technical advantage lies in maximizing the uptime of these high-value assets by eliminating manual material handling and preparation bottlenecks. By integrating the Auto Duct Line 2 as a front-end solution, a facility can ensure a continuous and standardized flow of material, supporting diverse production needs and making it a critical piece of metal fabrication equipment for sale for any modern workshop.
About Us
Established in 2004, we are a professional manufacturer specializing in machinery for air duct processing, laser cutting, and sheet metal forming. With over two decades of dedicated experience, we engineer intelligent manufacturing systems designed to optimize production for a global user base. Our expertise is backed by two major production bases and a skilled team of more than 140 professionals committed to innovation and quality.
Our industrial solutions have been successfully implemented by over 3,000 clients in 45 countries worldwide. We pride ourselves on creating a competitive edge for our partners by delivering high-performance, long-lifespan metal fabrication equipment for sale. Our core value lies in providing reliable technology that ensures precision, efficiency, and lasting value for every workshop, supported by comprehensive global service.
Request a tailored quotation for your production line now!
FAQ
Q1. Can the Auto Duct Line 2 be customized for specific production needs?
A: Yes, we offer full OEM customization to adapt the auto duct line machine to your specific requirements. Whether you need adjustments for different material dimensions, workshop layouts, or integration with existing equipment, our engineering team can design a solution. This ensures the duct production line perfectly aligns with your operational workflow and enhances your manufacturing efficiency.
Q2. What types and thicknesses of sheet metal can this machine process?
A: This duct fabrication machine is engineered to handle a range of materials common in HVAC applications. It efficiently processes galvanized sheet metal from 0.5mm to 1.5mm and stainless steel from 0.5mm to 1.2mm. The system ensures precise leveling, reinforcing, and cutting across these specifications, making it a versatile metal fabrication machine for high-quality ductwork production.
Q3. What kind of after-sales support is provided for international customers?
A: We are committed to supporting our global clients with comprehensive service. Every duct machine for sale includes a full one-year warranty. Furthermore, we provide global door-to-door after-sales service to assist with installation, training, and maintenance. Our goal is to ensure your equipment operates at peak performance and that you receive prompt, professional support regardless of your location.
Q4. What components are included with the Auto Duct Line 2 system?
A: The Auto Duct Line 2 is delivered as a complete, turnkey duct line solution. The standard system includes a robust electric feeding rack equipped with two material trays, each with a 7-ton load capacity. It also features the central host machine that integrates all processing functions and a user-friendly control system for seamless operation from raw material input to finished part output.
