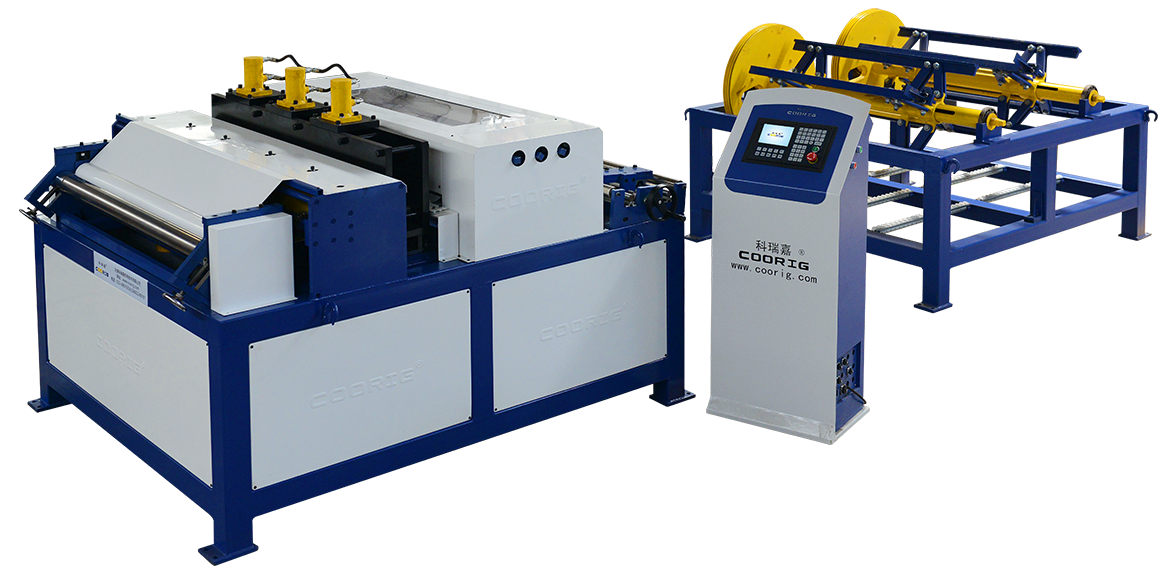

Name: Container Type Mobile Insulated Pipe Processing Station
Brand: Tianjin Coorig Technology Co., Ltd
Availability: InStock
Rating: 5 (1 reviews)

Uncoiling - Leveling - Punching - Reinforcing - Cutting - Round Forming
We can process galvanized sheet, aluminum zinc coated sheet, aluminum sheet, mainly used in the production of anti-corrosion and insulation outer metal pipes for petrochemical engineering, central air conditioning and other pipelines. Combined with our company's fully automatic plasma cutting machine and other auxiliary equipment, we can complete the production of insulation pipe shaped parts.

Get The Latest Quote

Add to Quote List View Quote List

Description

characteristic

1. High degree of automation, computer-controlled, reducing the traditional process that requires at least 4 people to cooperate in completing a section of pipeline to only one person's operation;
2. High production efficiency, with an average of 5 pipes produced per minute (pipe diameter size affects the number of pipes);
3. Good product consistency, automatic completion of rivet hole punching on the production line, convenient for on-site installation in the later stage.

Sample
	Customer site
Customer site

Main technical parameters

order code	model	machining Plate thickness （mm）	maximum Processing board width （mm）	Maximum Feed speed （m/min）	minimum pipe diameter （Φmm）	main Processing sheet metal	Material roll Maximum weight （kg）	maximum power （kW)	External dimensions *(Length Width * Height) （mm）**	Weight （kg）
1031	BWG-1	0.6-1.2	1250	18	180	Ordinary carbon steel plate Aluminum plate Aluminum zinc plated sheet	5000	7	6000 x1800 x 1700	3500

The appearance, configuration, and technical parameters of the equipment are for reference only. Please refer to the actual product for accuracy

More product information


Customer site	Customer site	Customer site

Advanced Solution for On-Site Pipe Fabrication
The COORIG Container Type Mobile Insulated Pipe Processing Station is an engineered solution for project managers and fabrication engineers requiring high-efficiency on-site production. This system is specifically designed for industries like petrochemical engineering and large-scale HVAC projects where rapid deployment and consistent output are critical. Our duct fabrication machine streamlines complex workflows, transforming raw sheet metal into finished insulated pipe sections within a single, mobile unit, mitigating the logistical challenges associated with off-site manufacturing and transport.

Integrated Automation and Enhanced Productivity
This fully integrated auto duct line machine automates the entire fabrication process, from uncoiling and leveling to punching, reinforcing, cutting, and round forming. It processes materials such as galvanized sheets, aluminum zinc coated sheets, and aluminum plates with a thickness range of 0.6–1.2 mm and a maximum width of 1250 mm. The system achieves a maximum feed speed of 18 m/min and can handle material rolls up to 5000 kg. This comprehensive automation ensures precise, repeatable results, minimizing material waste and eliminating manual processing errors for superior product quality.

Deployed in industries requiring extensive insulated piping, such as chemical plants, power generation facilities, and central air conditioning systems, this station provides significant operational value. The high automation level reduces labor requirements from four operators to just one, directly lowering operational costs. With a production rate averaging five pipes per minute, this system drastically increases project throughput. As a leading supplier of duct fabrication machines, COORIG ensures this equipment enhances project timelines and profitability by delivering consistent, high-quality pipe sections directly at the installation site.

Product Advantages

Modular Containerized Design and Mobile Production
The system’s primary structural advantage is its self-contained, mobile design, housed within a standard shipping container. This enables rapid deployment to any job site via standard logistics, eliminating the need for complex on-site assembly. The container protects sensitive machinery from environmental factors, ensuring operational reliability in demanding field conditions. This modular format also allows for seamless integration with other equipment, such as COORIG's plasma cutting machines, to create a comprehensive production line. For businesses looking for versatile metal fabrication equipment for sale, this plug-and-play solution offers unparalleled flexibility and asset mobility.

High Productivity and Intelligent Operation Experience
This station delivers exceptional performance and a rapid return on investment. The ability to produce an average of five pipes per minute with a single operator dramatically enhances productivity and reduces labor costs. The system's computer-controlled precision ensures superior product consistency, a critical factor for large-scale projects. A key usability feature is the automatic punching of rivet holes, which guarantees accurate alignment and simplifies the final on-site assembly process. This feature minimizes installation time and potential errors, making it a highly efficient hvac duct machine for time-sensitive contracts.

Use Scenarios

On-Site Fabrication and Anti-Corrosion Jacket Forming Capability
The mobile processing station is engineered as an on-site duct production system for forming anti-corrosion outer metal jackets used in insulated piping. It processes galvanized or aluminum zinc-coated sheets into precisely formed pipe sections directly where needed. This localized production approach reduces the logistical complexity and cost associated with transporting large, prefabricated components. By fabricating parts on-demand, the system supports just-in-time manufacturing, minimizes material handling, and ensures consistent quality control—effectively improving project efficiency and reducing potential transport-related damage.

High Production Capacity and Streamlined Supply Efficiency
Designed for large-scale HVAC and piping applications, this mobile station delivers high-throughput fabrication of insulated pipe sections with a production rate of up to five pipes per minute. Its automation ensures consistent accuracy, maintaining a steady output that aligns with intensive construction or installation schedules. By integrating seamlessly into on-site workflows, the system provides continuous, ready-to-assemble components, reducing dependency on external suppliers and enabling quick adjustments to meet evolving project specifications. This ensures efficient resource utilization and supports the overall reliability of the duct manufacturing process.

About Us

Established in 2004, our company is a specialized manufacturer of intelligent manufacturing systems for sheet metal processing. With over two decades of dedicated engineering experience, we deliver high-performance solutions in air duct machinery and fire water pipe processing equipment, focusing on automation and reliability for demanding industrial applications worldwide.

Our commitment to innovation is backed by a robust R&D department and a team of over 140 professionals. We provide trusted metal fabrication equipment for sale to a global network of over 3,000 customers in more than 45 countries, ensuring every machine meets stringent quality standards and delivers exceptional production efficiency for our partners.

Contact our technical team for expert assistance!

FAQ

Q1. How is this mobile station deployed on-site, and what are the setup requirements?
A: Housed in a standard container, this pipe processing machine is designed for easy transport and rapid on-site deployment. It requires a stable, level surface and a connection to a power source (Max Power: 7 kW). The integrated, all-in-one design minimizes complex installation procedures, allowing your team to begin production quickly in various work environments like petrochemical or central air conditioning projects.

Q2. What are the maximum material thickness and pipe dimensions this machine can handle?
A: This duct production line can process materials such as galvanized sheets, aluminum zinc-coated sheets, and aluminum plates with a thickness ranging from 0.6 mm to 1.2 mm. It accommodates a maximum material roll width of 1250 mm and can form pipes with a minimum diameter of 180 mm, making it a versatile metal fabrication machine for various insulation pipe specifications.

Q3. How does the automation reduce labor needs compared to traditional methods?
A: The system’s full computer control automates the entire workflow, from uncoiling and leveling to forming and cutting. This high level of automation streamlines the process, allowing a single operator to manage the entire auto duct line machine. This significantly reduces labor costs and potential for human error compared to traditional methods that typically require four or more workers for the same output.

Q4. Can this station produce parts other than straight pipes?
A: While this machine excels at producing straight outer metal pipes, its capabilities can be expanded. By integrating it with auxiliary equipment, such as a plasma cutting machine from our range of sheet metal fabrication machines for sale, you can create a complete system capable of producing a full range of complex insulation pipe-shaped parts, including elbows and other fittings, for comprehensive project requirements.
