| Technical features |

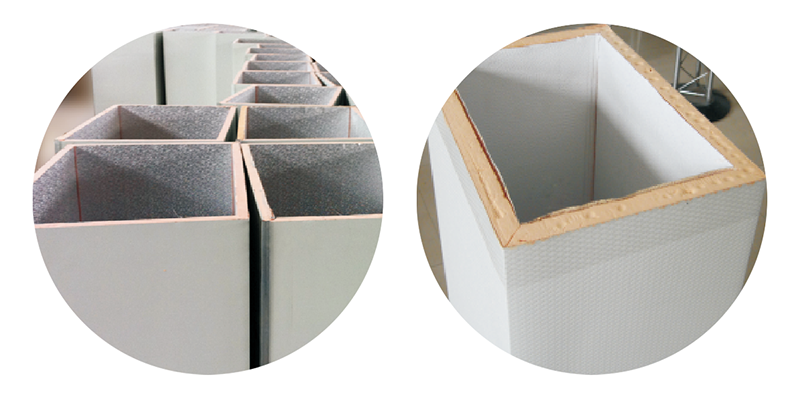

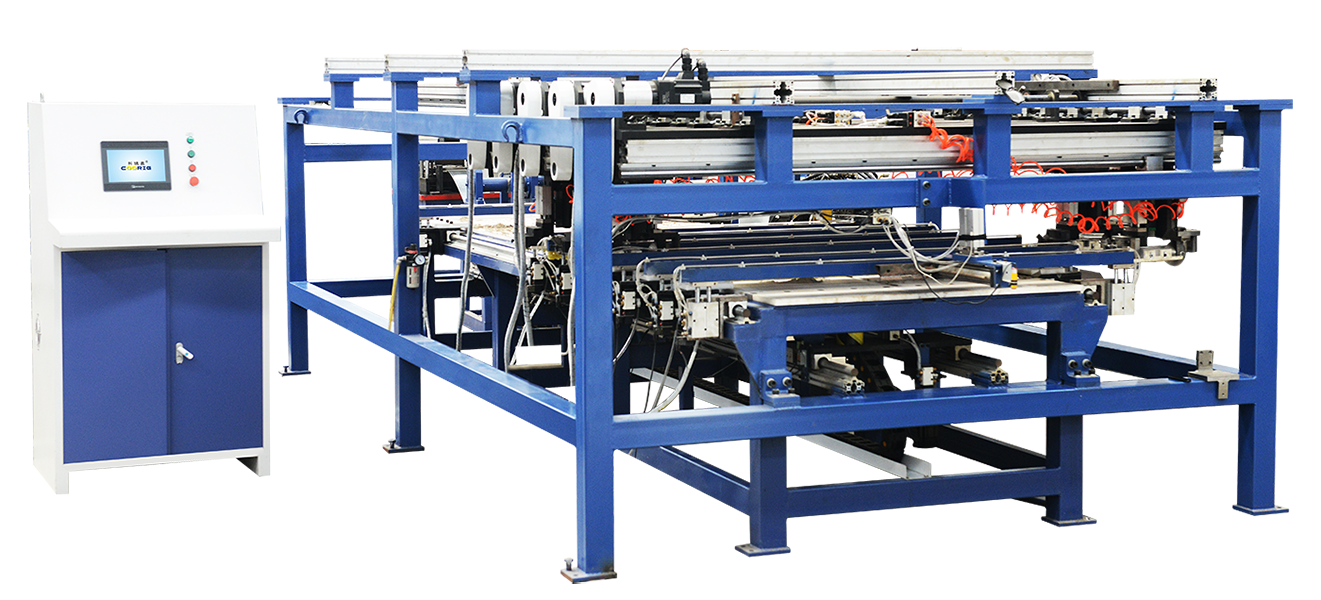

| The automatic production line for cutting composite boards is developed by Tianjin Keruijia Electromechanical Technology Co., Ltd. specifically for cutting single-sided and double-sided composite board air ducts. It consists of servo feeding, automatic slotting, cutting, and material receiving platforms. Can slot and cut composite air ducts of any size, with high production efficiency and reduced labor costs; Full servo control ensures the accuracy of cutting. The new blade can process single-sided or double-sided color steel plates, with a color steel plate thickness of up to 0.3mm. |
 |
| order code | model | machining Plate thickness （mm） |
Maximum material width （mm） |
Maximum Feed speed （m/min） |
maximum power （kW) |
External dimensions (Length * Width * Height) （mm） |
Weight （kg） |
| 1032 | PCP-30 | 20、25、30 | 1250 | 4 | 7 | 7500x2750x1760 | 2500 |
