| function |
1. Wide application range: Laser cutting machines with rolling platforms are widely used for cutting and processing various metal sheets such as sheet metal processing, air duct processing, and fireproof door production.
2. High degree of automation: It realizes the linkage of unwinding, leveling, pressing, automatic cutting, and automatic unloading of coil materials, greatly improving efficiency.
3. Perfectly integrated with commonly used layout software in the ventilation industry, such as PM2000, CamDuck, Lantek, ProNest, FastCAM, etc., without any conversion required; Supports multiple file formats such as ". NC", ". TXT", ". G", ". DFF", ". DWG", etc;
4. The system supports PM2000 and CAMDUCK automatic marking and coding functions (optional).
5. Optional factory wireless data communication function (optional). |
 |
| Basic configuration |
1. One double rack (including two material trays with a maximum load capacity of 7 tons)
2. A set of leveling and reinforcing mechanism;
3. A rolling cutting platform
4. One unloading platform
5. One laser generator (power optional)
6. One chiller
7. Automatic coding (optional)
8. Remote data transmission (optional)
9. Standard rolling disc cutting platform, optional rolling tooth cutting platform
(Suitable for processing small parts). |
technical parameter
| order code |
model |
Processing sheet metal and
Plate thickness
（mm） |
Maximum Processing
Range
（mm） |
Single axis operation
speed
（m/min） |
Single axis
acceleration
（g） |
repeat
positioning accuracy
（mm） |
Cutting speed
（m/min） |
Total power
（kW) |
External dimensions
(Length * Width * Height)
（mm） |
Weight
（kg） |
| 2001 |
LCM-1500×4000 |
Determine the power of the generator |
4000×1500 |
50 |
0.5 |
0.03 |
Plate thickness
When t=1mm,V=25m/min |
Determine the power of the generator |
5600×2220×1700 |
2000 |
| 2002 |
LCM-1500×4000-D |
Determine the power of the generator |
4000×1500 |
50 |
0.5 |
0.03 |
Plate thickness
When t=1mm,V=25m/min |
Determine the power of the generator |
5600×2220×1700 |
3000 |
| 2003 |
LCM-1500×4000-R |
Determine the power of the generator |
4000×1500 |
50 |
0.5 |
0.03 |
Plate thickness
When t=1mm,V=25m/min |
Determine the power of the generator |
5600x2400x2060 |
4500 |
| 2004 |
LCM-1500×6000 |
Determine the power of the generator |
6000×1500 |
50 |
0.5 |
0.03 |
Plate thickness
When t=1mm,V=25m/min |
Determine the power of the generator |
7730×2220×1700 |
3000 |
| 2005 |
LCM-1500×6000-D |
Determine the power of the generator |
6000×1500 |
50 |
0.5 |
0.03 |
Plate thickness
When t=1mm,V=25m/min |
Determine the power of the generator |
7600x2400x1700 |
4000 |
| 2006 |
LCM-1500×6000-R |
Determine the power of the generator |
6000×1500 |
50 |
0.5 |
0.03 |
Plate thickness
When t=1mm,V=25m/min |
Determine the power of the generator |
7600x2400x2060 |
5500 |
The appearance, configuration, and technical parameters of the equipment are for reference only. Please refer to the actual product for accuracy

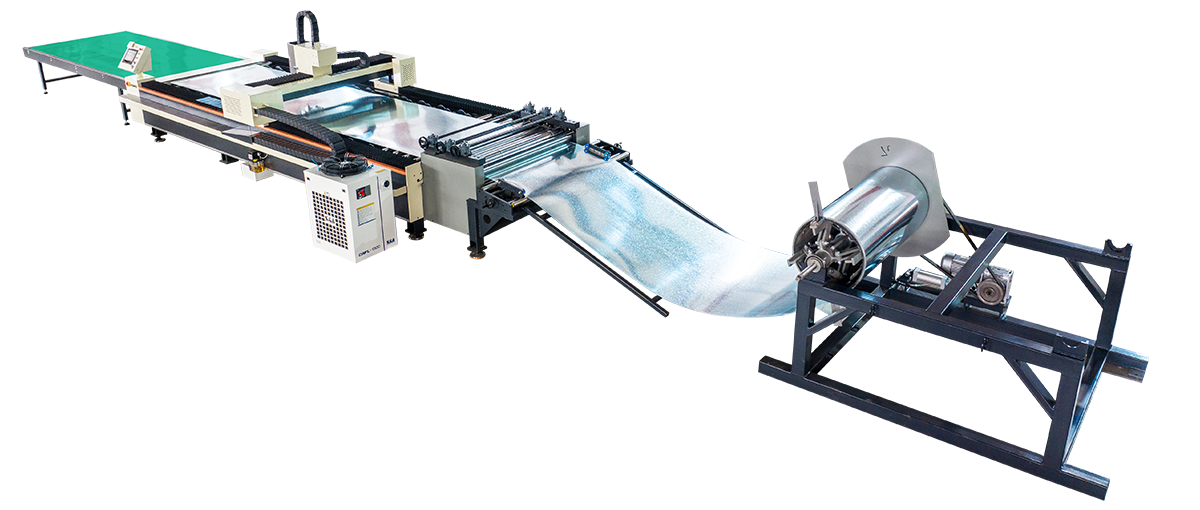

Innovative Automation for Superior EfficiencyThe COORIG Rolling Disc Platform Laser Cutting Machine features servo closed-loop feeding technology, ensuring exceptional feeding accuracy for coil materials. This laser cutting machine suppliers' solution allows simultaneous or independent control of leveling, rolling, and unloading platforms. It supports automatic cutting post-completion and fixed-length cutting without interruption, optimizing production flow. This metal laser cutting machine excels in cutting according to drawings, precise feeding, parts jumping, automatic micro connection, and micro lifting, enabling feeding single cutting at any position, whole-process reverse cutting, speed regulation, and convenient back-off.
Wide Compatibility and Advanced Software IntegrationAs one of the leading laser cutting machine manufacturers, COORIG ensures this laser cutting machine perfectly integrates with popular ventilation industry layout software such as PM2000, CamDuck, Lantek, ProNest, and FastCAM without requiring any file conversion. It supports multiple file formats including ".NC", ".TXT", ".G", ".DFF", and ".DWG". Optional features include automatic marking and coding functions via PM2000 and CAMDUCK, as well as wireless data communication capabilities, enhancing operational flexibility and data management.
Robust Design and Comprehensive ConfigurationThis metal laser cutting machine boasts a sturdy double rack with two material trays capable of handling up to 7 tons. It includes a leveling and reinforcing mechanism, rolling cutting platform, unloading platform, laser generator with optional power, and chiller. Additional options include automatic coding, remote data transmission, and a choice between standard rolling disc or rolling tooth cutting platforms, the latter being ideal for processing small parts. The cutting speed reaches up to 25 m/min for 1mm plate thickness, with precise positioning accuracy of 0.03 mm, ensuring consistent quality and productivity.
Product Advantages
•Competitive Pricing with Premium Quality: COORIG, recognized among top laser cutting machine manufacturers, offers this advanced laser cutting machine at a competitive price without compromising on build quality or performance.
•Cutting-Edge Technology: Incorporating servo closed-loop feeding and precise CNC control, this metal laser cutting machine delivers superior accuracy and speed, positioning COORIG as a leading laser cutting machine supplier.
•Environmental Efficiency: Designed for energy efficiency and reduced waste, this laser cutting machine contributes to sustainable manufacturing practices, appealing to eco-conscious industries.
•Personalized Solutions and Support: COORIG provides customizable configurations and optional features such as wireless data communication and automatic coding, supported by a global service network to ensure seamless operation.
•Low Maintenance and High Reliability: Built with durable components and backed by COORIG’s expertise as reputable laser cutter suppliers, this laser cutting machine ensures minimal downtime and long-term operational stability.
Usage Scenarios
The COORIG Rolling Disc Platform Laser Cutting Machine is ideal for diverse industrial applications requiring precision metal cutting. It is extensively used in sheet metal processing to fabricate components with complex geometries. HVAC manufacturers benefit from its integration with ventilation layout software, streamlining air duct processing with high accuracy and speed. Fireproof door producers rely on its consistent cutting quality and automated feeding to meet stringent safety standards. Additionally, metal fabrication shops utilize this metal laser cutting machine for custom parts production, enhancing productivity and reducing manual labor. Its flexibility allows processing of various metals, making it indispensable in automotive, aerospace, and construction industries. The high automation level reduces labor costs and improves throughput, making it a valuable asset for manufacturers aiming to optimize their production lines.
About Us
TIANJIN COORIG TECHNOLOGY CO.,LTD, established in 2004, is a premier manufacturer specializing in air duct and volume damper processing equipment, laser cutting machines, sheet metal forming machinery, and fire water pipe processing equipment. With over 20 years of industry experience, COORIG is committed to delivering intelligent manufacturing system solutions worldwide. Our expansive facilities cover over 63,600 square meters, supported by a skilled team of more than 140 professionals. COORIG’s products, including advanced laser cutting machines, are exported to 45 countries and trusted by over 3,000 customers globally. We pride ourselves on innovation, quality, and customer-centric service, making us a top choice among laser cutter suppliers and laser cutting machine manufacturers.Discover the unmatched precision and efficiency of the COORIG Rolling Disc Platform Laser Cutting Machine today. As leading laser cutting machine manufacturers and laser cutting machine suppliers, we invite you to elevate your metal processing capabilities with our cutting-edge metal laser cutting machine. Contact us now for a personalized quote and transform your production line with COORIG’s innovative solutions!
FAQ
Who are we?
We are TIANJIN COORIG TECHNOLOGY CO.,LTD, a professional manufacturer and supplier specializing in laser cutting machines, sheet metal processing equipment, and intelligent manufacturing systems with over 20 years of industry experience.
How do we guarantee quality?
Our laser cutting machine suppliers ensure quality through advanced CNC technology, rigorous testing, integration with industry-leading software, and continuous innovation backed by a skilled technical team.
What can you buy from us?
You can purchase a wide range of products including laser cutting machines, metal laser cutting machines, air duct production lines, sheet metal forming machines, and fire water pipe processing equipment.
Why choose us over other suppliers?
We offer competitive pricing, cutting-edge technology, extensive customization options, global service networks, and a proven track record with over 3,000 satisfied customers worldwide.
What services do we provide?
We provide personalized equipment consultation, after-sale service, remote data transmission options, and technical support to ensure seamless integration and operation of our laser cutting machines.
Can the laser cutting machine integrate with ventilation software?
Yes, our laser cutting machines perfectly integrate with popular ventilation layout software such as PM2000, CamDuck, Lantek, ProNest, and FastCAM without file conversion.
Is wireless data communication available for the laser cutting machine?
Yes, optional factory wireless data communication functions are available to enhance operational flexibility and connectivity.
