During production, simply input the size of the air duct to be processed, and the production line can automatically complete uncoiling, leveling, reinforcing, punching, square forming, and shearing
Very suitable for mixed production of TDF common plate flanges, angle steel flanges, and (TDC) flange air ducts; Equipped with middle support hole, common TDF flange side hole, and angle flange bending function (optional).

Get The Latest Quote

Add to Quote List View Quote List

Description

Basic configuration

1. One electric decoiler, including two 7T coils;
2. 1 material feeding device;
3. 1 main machine;
4. One set of control system.

Functional flowchart

technical parameter

order code	model	Processing sheet metal and Plate thickness （mm）	Maximum Processing Board width （mm）	Maximum Feed speed （m/min）	Maximum roll material weight （kg）	External dimensions *(Length Width * Height) （mm）**	Total power （kW)	Weight （kg）
1023	ADL-L3C12S08-1250	0.5-1.2 galvanized sheet 0.5-0.8 stainless steel	1250	15	7000	8200x1750x1500	9	3500
1024	ADL-L3C15S12-1250	0.5-1.5 galvanized sheet 0.5-1.2 stainless steel	1250	15	7000	9200x1750x1500	9	5500
1025	ADL-L3C12S08-1500	0.5-1.2 galvanized sheet 0.5-0.8 stainless steel	1500	15	7000	8200x2200x1500	9	3500
1026	ADL-L3C15S12-1500	0.5-1.5 galvanized sheet 0.5-1.2 stainless steel	1500	15	7000	9200x2200x1500	9	6000

The appearance, configuration, and technical parameters of the equipment are for reference only. Please refer to the actual product for accuracy

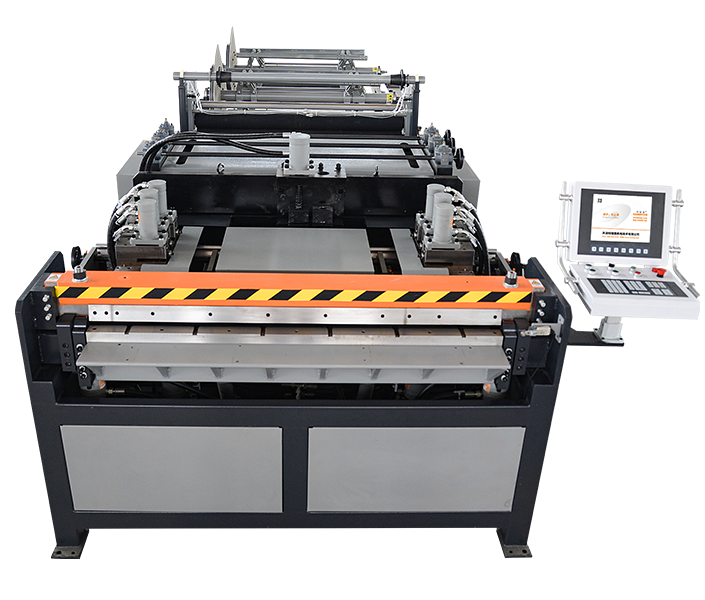

Seamless Automated Production with Advanced ControlThe COORIG Auto Duct Line 3 is a state-of-the-art duct line that automates the entire production process. By simply inputting the size of the air duct, this auto duct line machine automatically completes unwinding, leveling, reinforcing, punching, square forming, and shearing, significantly reducing manual labor and improving production accuracy. Its integrated control system ensures precise handling of galvanized and stainless steel sheets, making it a reliable duct making machine for diverse manufacturing needs. This automation not only enhances productivity but also ensures consistency and precision in every output, which is crucial for maintaining high standards in duct production.

Versatile and Efficient Full Duct Line Machinery for SaleThis full duct line machinery for sale is specifically engineered for mixed production environments, supporting TDF common plate flanges, angle steel flanges, and plug-in type (TDC) flange air ducts. Optional functions such as middle support rod drilling, common plate flange edge drilling, and square bar pressing enhance its versatility. The duct line can handle sheet metal thicknesses ranging from 0.5 to 1.5 mm and maximum board widths up to 1500 mm, ensuring adaptability to various project requirements. This adaptability makes it an invaluable asset in settings where flexibility and efficiency are paramount, allowing manufacturers to meet diverse client demands without compromising on speed or quality.

Robust Design with Premium Components for Long-Term UseBuilt with durable materials and advanced technology, the COORIG Auto Duct Line 3 is a premium duct making machine designed for continuous industrial use. Its electric overall feeding rack with two 7-ton load-bearing trays and a dedicated material rack provide stable feeding. The machine’s compact footprint and optimized power consumption make it an eco-friendly auto duct line machine that maximizes operational efficiency without compromising quality. This robust construction ensures that the machine can withstand the rigors of continuous use, providing a reliable solution that enhances operational longevity and reduces downtime.

Product Advantages

•Cost-Effective Investment: COORIG offers competitive pricing on this full duct line machinery for sale, delivering high value through automation that reduces labor costs and increases throughput. This makes it a smart investment for businesses looking to enhance productivity while managing operational costs effectively.
•High-Quality Materials: The duct making machine is constructed using robust components capable of processing galvanized and stainless steel sheets, ensuring durability and longevity. This high-quality construction guarantees that the machine can handle demanding production schedules without compromising on performance.
•Innovative Automation: This auto duct line machine features an intelligent control system that automates unwinding, leveling, reinforcing, punching, forming, and shearing, resulting in consistent, precise duct production. This innovation not only streamlines operations but also enhances the accuracy and quality of the final products.
•Eco-Friendly Operation: Designed with energy efficiency in mind, the duct line minimizes power consumption while maintaining high production speeds, supporting sustainable manufacturing practices. This eco-friendly approach not only benefits the environment but also helps businesses reduce their energy costs.
•Comprehensive Support & Customization: COORIG provides tailored solutions including optional drilling and pressing functions, alongside professional after-sale service, ensuring the full duct line machinery for sale fits your specific production needs and is well-maintained. This comprehensive support ensures that businesses can maximize the value of their investment, with ongoing assistance to address any operational challenges.

Usage Scenarios

The COORIG Auto Duct Line 3 excels in various industrial applications where high-quality air ducts are essential. HVAC manufacturers benefit from its ability to produce TDF common plate flanges and angle steel flanges with precision and speed, optimizing production lines. Construction companies utilize this duct making machine to fabricate plug-in type (TDC) flange air ducts, streamlining installation processes. Fabricators engaged in mixed production environments appreciate the machine’s flexibility in handling different flange types and sheet thicknesses. Additionally, maintenance and service providers rely on this auto duct line machine for quick turnaround of custom duct orders, enhancing client satisfaction. Its adaptability to multiple sheet metal types ensures it supports diverse project specifications, making it an indispensable asset in metal fabrication workshops. By facilitating efficient and precise duct production, the COORIG Auto Duct Line 3 helps businesses meet their operational goals and deliver exceptional value to their clients.

About Us

TIANJIN COORIG TECHNOLOGY CO.,LTD, established in 2004, is a leading manufacturer specializing in air duct and volume damper processing equipment, laser cutting machines, sheet metal forming machinery, and fire water pipe production lines. With over 20 years of industry experience, COORIG is committed to delivering intelligent manufacturing system solutions worldwide. Our extensive product range includes innovative duct line machines, including the Auto Duct Line 3, designed to meet diverse industrial needs. Operating from our Tianjin headquarters and Hubei production base, we serve over 3000 customers across 45 countries, supported by a professional team of more than 140 employees. COORIG’s dedication to quality, innovation, and customer service positions us as your trusted partner for auto duct line machine solutions and beyond.

Discover the unmatched efficiency and precision of the COORIG Auto Duct Line 3, the ultimate duct line solution for your manufacturing needs. Don’t miss out on owning this advanced auto duct line machine that revolutionizes production with automation and versatility. Contact us now to get a personalized quote and elevate your duct fabrication process with the best full duct line machinery for sale. Act today and transform your production capabilities with COORIG’s premium duct making machine!

FAQ

Who are we?
We are TIANJIN COORIG TECHNOLOGY CO.,LTD, a professional manufacturer of air duct processing equipment, laser cutting machines, and sheet metal forming machinery with over 20 years of experience.

How do we guarantee quality?
We ensure quality through advanced technology, robust materials, comprehensive testing, and professional after-sale service to maintain high standards for all our duct line products.

What can you buy from us?
You can purchase a wide range of equipment including auto duct line machine, laser cutting machines, flange machines, lock former machines, and other sheet metal forming machinery.

Why choose us over other suppliers?
Our 20+ years of expertise, extensive product range, global customer base, and commitment to intelligent manufacturing solutions make us a reliable supplier for full duct line machinery for sale.

What services do we provide?
We offer customized equipment solutions, technical support, installation guidance, and after-sale maintenance services to ensure optimal performance of your duct making machine.

Can the Auto Duct Line 3 handle different flange types?
Yes, it is very suitable for mixed production of TDF common plate flanges, angle steel flanges, and plug-in type (TDC) flange air ducts, with optional drilling and pressing functions.

What materials can the Auto Duct Line 3 process?
It can process galvanized sheets (0.5-1.5 mm) and stainless steel sheets (0.5-1.2 mm), ensuring versatility for various industrial applications.
